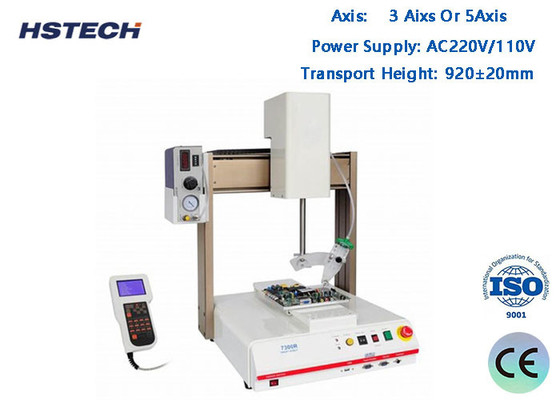

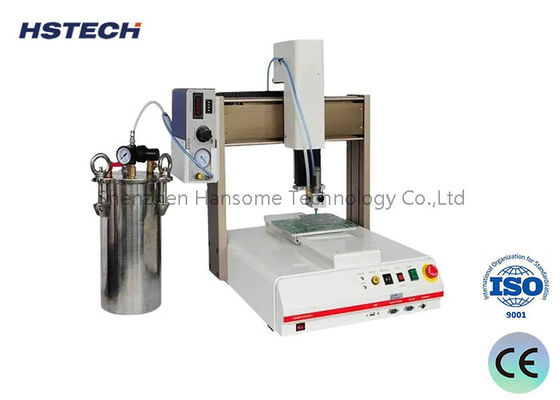

High-Speed 3Axis Selective Coating Machine width Adjustment Function
Product introduction
The X, Y, Z-axis drive platform utilizes a precision ball screw paired with a Fuji servo motor.
It is capable of achieving selective coating for a wide variety of PCB types.
The system supports straight-line, circular, and arc coating and dispensing patterns.
It can effectively and uniformly coat the edges of components, eliminating the spray shadow effect.
The accuracy of the system is ±0.02mm.
The transmission and control system boasts high speed, reliability, and stability.
Two valves can automatically switch between spray and coating actions, enabling high-density PCB coating processes.
The system features a smart automatic width adjustment function that adjusts automatically after inputting the board width.
Machine Specification
| Product name | Selective conformal coating machine |
| Model | HS-CC300 |
| Transmission height | 920±20mm |
| Conveyor width | 50-450mm/or customized |
| Transmission | L to R, or R to L |
| Component height | up and down max 100mm |
| Size of PCB board edge | ≥5mm |
| Transport speed | 0-12000mm/min |
| 3 Axis drive speed | 800mm/s |
| Repeat accuracy | ±0.02mm |
| Storage programs | up to 1000 |
| Power supply | AC220/110V |
| Air pressure | 4-kgf/cm2 |
| Glue tank | 10L,manual stirring |
| Control mode | Industrial PC+Motion control card |
| Linear guide adjustment | Intelligent adjust |
| Programming mode | Manual teaching |
| Communication port | SMEMA |
| Lighting source | Self-equipped lighting source |
| Detection lighting source | Self-equipped |
| Software | Windows+coating software |
| Driving Motor | Stepper motor(2pcs) |
| 3 axis driving mode | Servo motor+screw driver module+Electric Cylinder |
| Number of rubber valves | 1 spray valve+ 1 dispensing valve |
| Spray width | 3-20mm |
| Spraying method | Automatic |
| Total power | 2.6kW |
| Machine body | Stainless steel |
| Machine weight | 600kg |
| Machine dimension | 1060x1200x1700mm |
