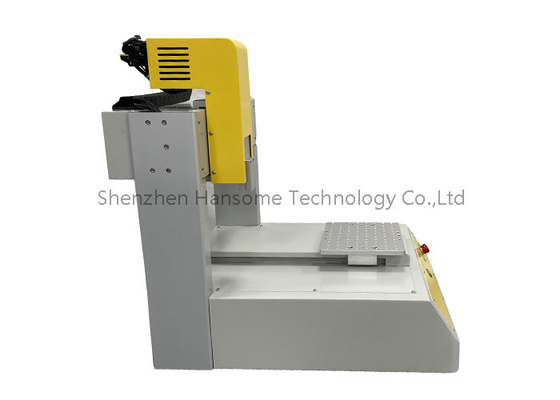

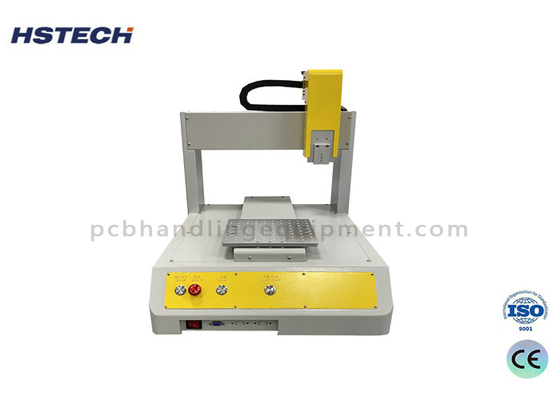

Easy Operation Single Platform Small Type Glue X Y Axis Dispensing Machine For Electronic Assembly
Introduction
The glue dispensing machine is an important equipment used in the electronic manufacturing, automobile manufacturing and other industries. It is used to automatically and accurately apply glue or other fluids on the surface or parts of products.
Simple and compact structure
The single-platform glue dispensing machine adopts a single working platform design. The overall structure is simpler and more compact than the multi-platform glue dispensing machine, with a small footprint, suitable for small and medium-sized production lines.
Convenient and flexible operation
The glue dispensing head can move freely along the X/Y axis, and with programming control, it can achieve precise positioning and flexible glue dispensing. The operation interface is simple and clear, which is convenient for workers to operate.
High and stable glue dispensing accuracy
The servo motor drive and high-precision glue dispensing valve can achieve micro-dispensing, and the repeated positioning accuracy is as high as ±0.01mm. The glue dispensing quality is stable and reliable.
Wide range of applications
The single-platform glue dispensing machine can be used for glue dispensing and assembly of various products such as PCB boards, electronic components, and automotive parts. It is suitable for a variety of glues such as hot melt glue, UV glue, and conductive glue.
Easy to integrate automation
The single-platform design is conducive to integration with automatic loading and unloading, detection and other equipment to realize the automation of the production line.
Low maintenance cost
Compared with multi-axis models, the structure and system of single-platform dispensing machines are simpler, with lower maintenance costs, and are suitable for small and medium-sized enterprises.
1. PC computer LCD screen operation, easy to program, easy to learn and understand;
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.
7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;
8. The software has functions such as regional display, translation rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 30kg |
| Dimension(L*W*H) | 48*64*60CM |
