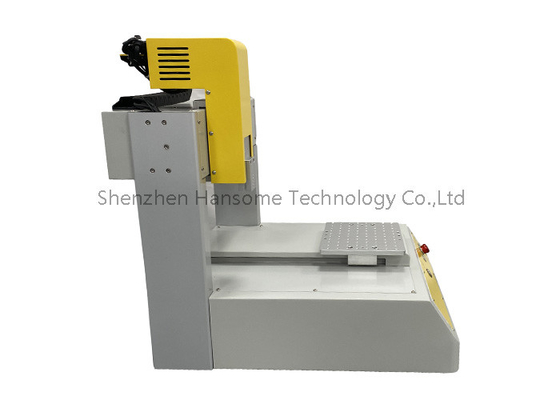

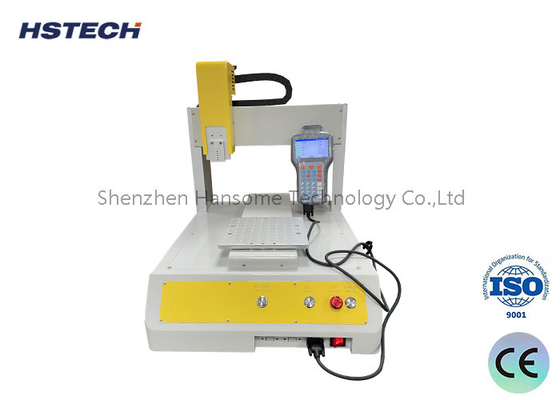

Flexible Production Glue Dispensing Machine with Single Working Platform
Introduction
The glue dispensing machine is an important equipment used in the electronic manufacturing, automobile manufacturing and other industries. It is used to automatically and accurately apply glue or other fluids on the surface or parts of products.
Key Features
Precise Control
Provides accurate control over the amount and placement of adhesive, ensuring minimal waste and consistent application.
Variety of Adhesives
Compatible with different types of adhesives, including liquids, gels, and pastes.
Automated Operation
Many models can be programmed for specific tasks, allowing for automation of the dispensing process.
Adjustable Parameters
Users can adjust flow rates, pressure, and dispensing speed to suit different materials and applications.
Nozzle Options
Various nozzle sizes and shapes are available to accommodate different application needs.
User-Friendly Interface
Often equipped with a touchscreen or control panel for easy operation and programming.
Benefits
Increased Efficiency
Speeds up the assembly process by automating adhesive application.
Consistent Quality
Ensures uniform adhesive application, reducing defects and enhancing product quality.
Cost-Effective
Minimizes adhesive waste and lowers overall material costs.
Versatility
Suitable for a wide range of industries and applications.
Machine feature
1. PC computer LCD screen operation, easy to program, easy to learn and understand;
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.
7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;
8. The software has functions such as regional display, translation rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 30kg |
| Dimension(L*W*H) | 48*64*60CM |
Applications
Electronics Assembly
Used for applying adhesives to components in electronic devices.
Automotive Manufacturing
Commonly used for bonding parts in vehicle assembly.
Furniture Production
Used for gluing wood, laminate, and other materials in furniture manufacturing.
Packaging
Employed in the packaging industry for sealing boxes and containers.
