| Brand Name: | HSTECH |
| Model Number: | HS-D331 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

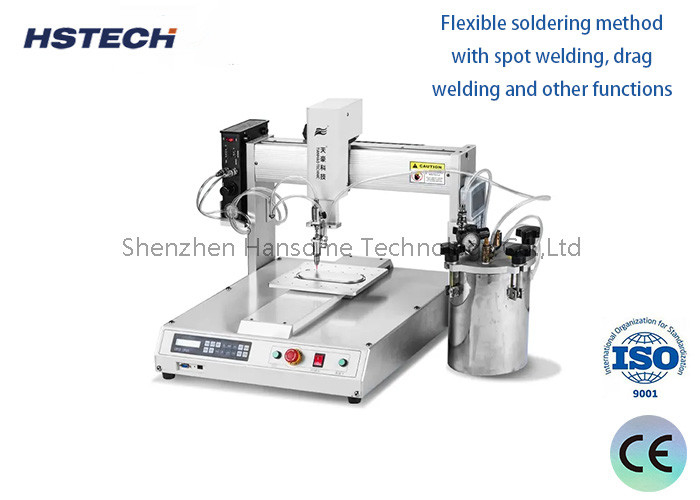

Automatic Desktop 3 Axis Single Head PUR Glue Dispensing Machine
Specification
| Model | HS-D331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| Dispensing Valve | PUR heating valve |
| X/Y/Z working range | 300/300/100mm |
| XYZ speed | 300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | Stepper motor |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | CSK(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Cylinder | AirTAC |
| Glue storage | 30ml PUR Syringe type |
| Machine size | 520*585*597mm |
| Gross weight | 50kg |
1. With drawing points, lines, arcs, circles, irregular curves continuous complementary input procedure function, support three-dimensional dispensing
2. Stable high-speed operation and low noise.
3. Adopting die-casting aluminium alloy frame, high mechanical performance, strong bearing pressure, beautiful appearance.
4. Dispensing volume size can be coarse and fine, gluing speed, dispensing time, stopping time can be adjusted.
5. Adopt double-guide mechanical arm, z-axis brake motor, greatly increasing the stability of the equipment and the strength of the movement.
6.Support the import function of computer graphics, can import NC file, AI file, DXF file, JPG format.
