| Brand Name: | HSTECH |
| Model Number: | HS-D441 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

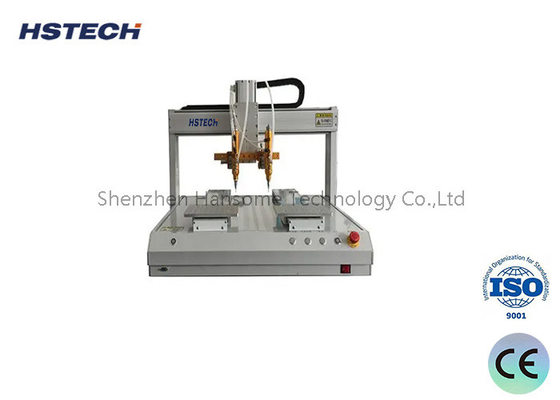

Touch Screen 4Axis Glue Dispensing Machine with 1-4 Head Dispensing Device
1. PC computer LCD screen operation, easy to program, easy to learn and understand;
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.
7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;
8. The software has functions such as regional display, translation rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |

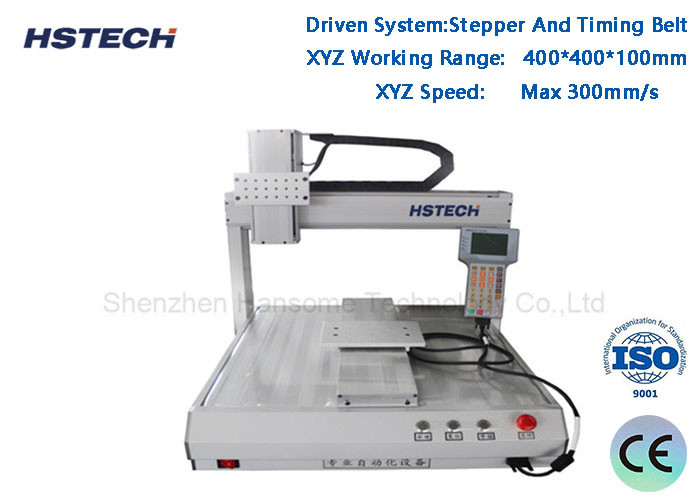

| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 40kg |
| Dimension(L*W*H) | 616*685*645mm |
