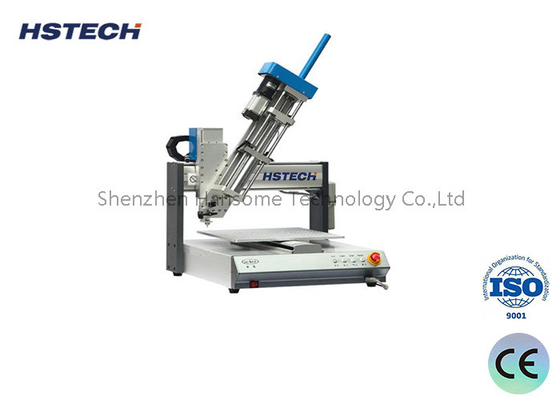

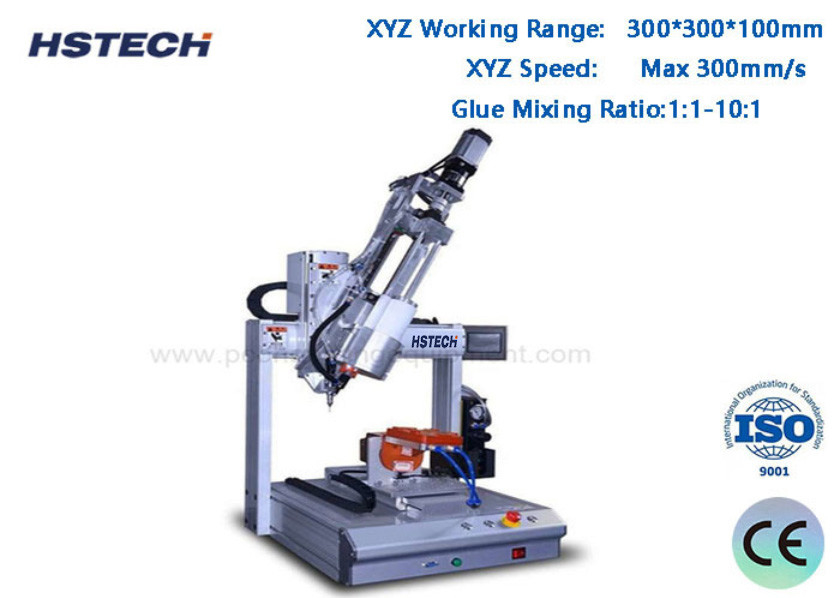

Customizable Glue Dispensing Machine for Inner Wall Outer Wall and Vertical Surface

Detail Information

Place of Origin:

China

Certification:

Product Name:

AB Glue Dispensing Machine

Other Name:

4 Axis Glue Dispensing Machine

XYZ Working Range:

300*300*100mm

XYZ Speed:

Max 300mm/s

Glue Mixing Ratio:

1:1-10:1

Dispensing Precision:

Glue Amount±1%, Glue Proportion±1%

Drive System:

Stepping Motor + Timing Belt

Repeat Accuracy:

±0.02mm

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Product Description

Versatile Glue Dispensing Machine with Fixtures and Heating Control

Machine feature

Operation via PC LCD screen, facilitating easy and intuitive programming.
Supports versatile drawing capabilities, including points, lines, and surfaces, enabling continuous translation and 3D non-planar trajectories.
Programmable control over glue volume, speed, operation time, and pause duration.
A dedicated dispensing controller ensures stable and precise dispensing without contamination.
Ideal for rapid dispensing and drawing applications in diverse scenarios, including inner walls, outer walls, and vertical surfaces.
Customizable options available, including fixtures, glue guns, controllers, and heating temperature control devices.

Specification

ITEM	SPEC
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision	Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range	300300100mm(Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount±1%, Ratio:±1%
Operation Method	Auto
Programming	Teach Pendant
Control	Board card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimension(LWH)	716585645mm
Power Supply	220V 50-60Hz 350W
