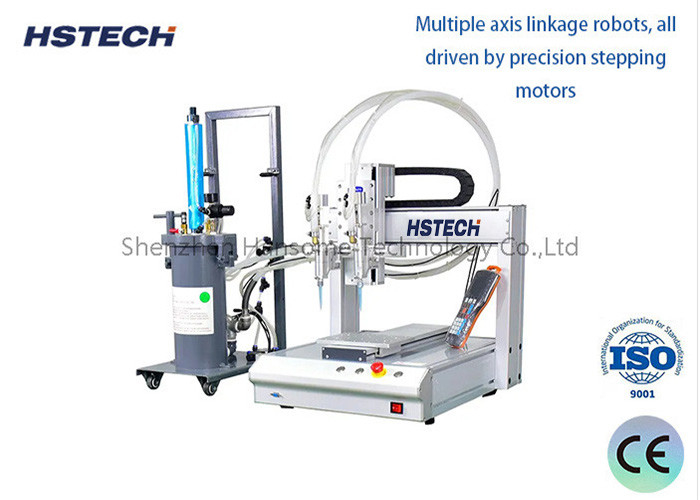

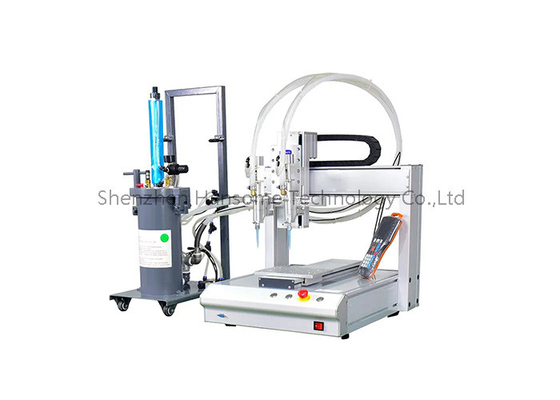

High-Capacity LED Bulb Glue Dispensing Machine with Four Work Stations
Introduce
The LED Bulb Glue Dispenser is a specialized automated device engineered to meticulously blend two types of glue (Group A and Group B) and precisely apply them to the workpiece surface. This versatile tool finds extensive use in bonding, sealing, and filling operations across diverse industries, such as electronics manufacturing, home appliances, automotive, and numerous others.
High-Throughput Production: This dispenser features four workstations operating harmoniously, capable of achieving a designed output of 1000 to 1500 pieces per hour, thereby optimizing throughput and boosting productivity.
Smart Workpiece Detection: Equipped with a sophisticated workpiece detection system, the machine intelligently applies glue or skips the process based on the presence of a workpiece, thereby enhancing material utilization and minimizing waste.
Configurable Gluing Patterns: The dispenser offers versatility in defining gluing patterns, accommodating full circles, single points, segmented arcs, and other customized designs tailored to specific workpiece needs. This flexibility broadens its applicability across various manufacturing scenarios.
Flexible Working Modes: Configurable in either four-station or two-station mode, the dispenser provides operational flexibility to adapt to different production requirements or workpiece types.
Intuitive Controls: Featuring an easy-to-use touch screen interface complemented by physical buttons, the dispenser is straightforward to learn and operate. Unique settings can be programmed for different glue types, optimizing performance based on each material's unique characteristics. This simplifies setup and enhances operational efficiency.
Precise Proportion Mixing:
The machine is equipped with a finely tuned mixing system to guarantee that components A and B are blended in the exact ratio, ensuring optimal glue performance.
Efficient Automation:
The automatic dispensing system boosts production efficiency by minimizing manual intervention and reducing labor intensity.
Versatile Dispensing Methods:
The system supports various dispensing techniques, including dripping, spraying, and flowing glue, catering to diverse process needs.
User-Friendly Adjustments and Operation:
The intuitive interface allows users to effortlessly tweak dispensing parameters like pressure, speed, and duration.
Intelligent Control System:
The machine features a PLC or computer control system that monitors the dispensing process in real-time, ensuring stability and reliability.
Application scenarios:
Electronic Manufacturing:
In the electronic manufacturing sector, it is utilized for encapsulating components, bonding parts, and sealing circuit boards, thereby enhancing product durability and reliability.
Automotive Industry:
In the automotive industry, it carries out tasks such as window sealing and interior bonding to ensure both the sealing integrity and aesthetic appeal of vehicles.
Home Appliance Industry:
Within the home appliance industry, it is employed for assembling and repairing various appliances, offering robust connections and sealing solutions.
Crafts and Furniture:
In the crafts and furniture sectors, it provides efficient application of boiled cast glue, which is essential in woodworking and handicraft production.
| Model | HS-BD4 |
| MCU | Industrial PLC |
| Programming | Text Demonstration Programmer |
| Drive mode | Precise Stepping Motor |
| Max Dispensing Diameter | 160mm(two station),110mm(four station) |
| Motor Speed | 0 ~ 300 RPM |
| Positioning Accuracy | ±0.1mm |
| Z-axis Adjust Range | 250mm |
| Z-axis Working Travel | 50mm |
| Dimension (L*W*H) | 420mm*532mm*532mm |
| Weight | 35Kg |
| Working Power | AC220V/50~60Hz/200W |
| Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |
The LED bulb and Par light glue dispenser is specifically designed for precise glue application to secure lighting components. The Four-station Round Glue Dispenser is notable for its four stations positioned on a rotating disc at 90-degree intervals. With each 90-degree rotation of the revolution motor, the workpiece is seamlessly moved to the next gluing nozzle, ensuring uninterrupted operation.
An auto-rotation motor rotates the workpiece uniformly during the glue application process, guaranteeing an even coating. This combination leads to an efficient and precise gluing process, making it ideal for lighting manufacturers who seek to enhance production quality and throughput.
