| Brand Name: | HSTECH |
| Model Number: | HS-D441 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

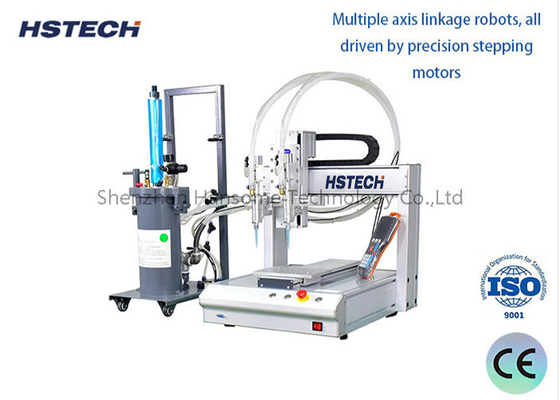

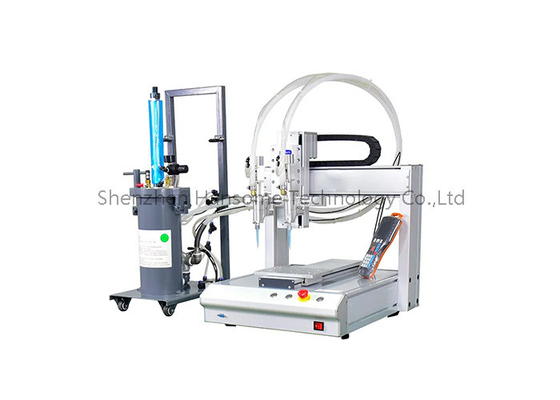

High-Capacity LED Bulb Glue Dispensing Machine with Four Work Stations
Introduce
The LED Bulb Glue Dispenser is a specialized automated tool designed to precisely mix two types of glue (Group A and Group B) and apply them accurately to the surface of the workpiece. It has widespread applications in bonding, sealing, and filling processes across various industries, including electronics manufacturing, home appliances, automotive, and more.
1.High-Efficiency Production: This dispenser boasts four workstations operating seamlessly, achieving a designed capacity of 1000 to 1500 pieces per hour, optimizing throughput and productivity.
2.Intelligent Workpiece Detection: Equipped with an advanced workpiece detector, the machine intelligently applies glue or skips the process based on the presence of a workpiece, enhancing material efficiency and minimizing waste.
3.Customizable Gluing Patterns: The dispenser offers flexibility in defining gluing patterns, accommodating full circles, single points, segmented arcs, and other customized designs tailored to specific workpiece requirements. This versatility broadens its applicability across various manufacturing contexts.
4.Adaptable Working Modes: Configurable in either four-station or two-station mode, the dispenser provides operational flexibility to accommodate varying production demands or workpiece types.
5.User-Friendly Controls: Featuring an intuitive touch screen interface with physical buttons, the dispenser is straightforward to learn and operate. Unique settings can be programmed for different glue types, optimizing performance based on each material's characteristics. This simplifies setup and enhances operational efficiency.
Precise proportion mixing
Equipped with a precisely controlled mixing system to ensure that components A and B are mixed in the set ratio to ensure the performance of the glue.
Efficient automation
The automatic dispensing system improves production efficiency, reduces manual operation, and reduces labor intensity.
Multiple dispensing methods
Supports multiple dispensing methods such as dripping, spraying, and flowing glue to meet different process requirements.
Easy to adjust and operate
The user-friendly interface allows users to easily adjust dispensing parameters such as pressure, speed, and time.
Intelligent control system
Equipped with a PLC or computer control system to monitor the dispensing process in real time to ensure stability and reliability.
Application scenarios:
Electronic manufacturing
Used for encapsulating, bonding components, and sealing circuit boards to improve product durability and reliability.
Automotive industry
Carry out window sealing, interior bonding, etc. to ensure the sealing and aesthetics of the car.
Home appliance industry
Used for assembling and repairing various home appliances, providing strong connections and sealing.
Crafts and furniture
Provide efficient application of boiled cast glue in woodworking and handicraft production.
| Model | HS-BD4 |
| MCU | Industrial PLC |
| Programming | Text Demonstration Programmer |
| Drive mode | Precise Stepping Motor |
| Max Dispensing Diameter | 160mm(two station),110mm(four station) |
| Motor Speed | 0 ~ 300 RPM |
| Positioning Accuracy | ±0.1mm |
| Z-axis Adjust Range | 250mm |
| Z-axis Working Travel | 50mm |
| Dimension (L*W*H) | 420mm*532mm*532mm |
| Weight | 35Kg |
| Working Power | AC220V/50~60Hz/200W |
| Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |
The LED bulb and Par light glue dispenser is tailored for precise glue application to secure lighting components. The Four-station Round Glue Dispenser stands out, featuring four stations on a rotating disc at 90-degree intervals. Each 90-degree rotation of the revolution motor moves the workpiece to the next gluing nozzle, ensuring continuous operation.
An auto-rotation motor rotates the workpiece uniformly during glue application, ensuring even coating. This combination results in an efficient, precise gluing process, ideal for lighting manufacturers aiming to improve production quality and throughput.
