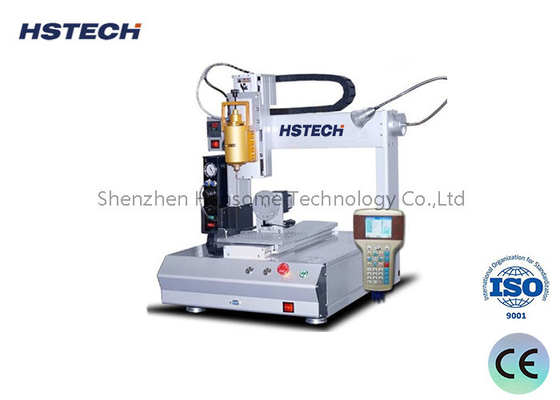

Desktop Type Glue Dispensing Machine With 3 Axis Stepper Motor And PUR Heating Valve

Desktop Type Glue Dispensing Machine With 3 Axis Stepper Motor And PUR Heating Valve

Introduction

Glue dispensing machine: Glue dispensing machine, also known as glue applicator, glue dispensing machine, glue dispensing machine, etc., is an automated machine that specializes in controlling fluid and dripping and coating the fluid on the surface of the product or inside the product. The dispensing machine is mainly used to accurately point, inject, apply and drip glue, paint and other liquids in the product process to the precise position of each product. It can be used to realize dotting, drawing lines, circular or arc shapes.

working principle

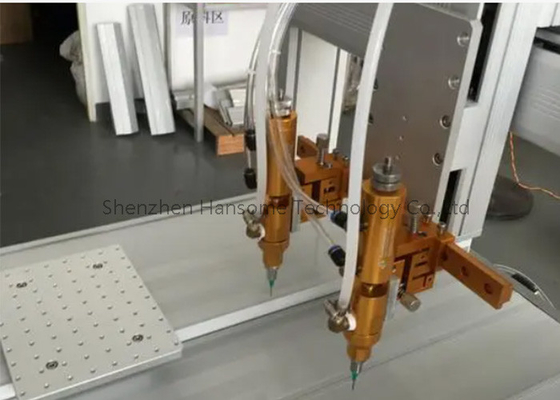

1. Working principle: Compressed air is fed into the glue bottle (syringe), and the glue is pressed into the feed pipe connected to the piston chamber. When the piston is in the upper stroke, the piston chamber is filled with glue. When the piston pushes downward, the glue is dispensed. When the needle is pressed, the glue is pressed out from the needle tip. The amount of glue dripped is determined by the distance of the piston's downward stroke, which can be adjusted manually or controlled in the software.

2. Features: high speed, low sensitivity to glue viscosity.

3. Advantages: It can increase the dispensing speed, improve the dispensing environment, and improve the dispensing quality.

Dispensing machine classification.

Ordinary dispensing machine

1. Controller-type dispensing machines: including automatic dispensing machines, quantitative dispensing machines, semi-automatic dispensing machines, digital display dispensing machines, precision dispensing machines, etc.

2. Desktop dispensing machine: including desktop dispensing machine, desktop three-axis dispensing machine, desktop four-axis dispensing machine, or desktop automatic dispensing machine, 3-axis assembly line dispensing machine, multi-head dispensing machine, multi-output dispensing machine Glue mouth dispensing machine, circle dispensing machine, rotating dispensing machine, speaker dispensing machine, mobile phone button dispensing machine, cabinet dispensing machine, etc.

3. Semi-automatic dispensing machines: including microcomputer precision dispensing machines, LED digital display dispensing machines, automatic suck-back dispensing machines, and code-drawing cycle dispensing machines.

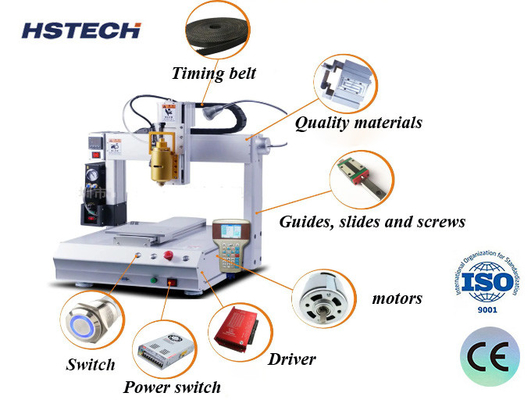

3-axis control system
The machine contains three independent control axes, X, Y, and Z, which can accurately locate and control the position of glue injection.
Complex glue coating paths and patterns can be achieved through programming.

High-precision distribution
Using precise micro pumps or valves, it can achieve milliliter-level glue precision distribution.
It can meet the detailed coating requirements of various glues, sealants, buffer glue and other materials.

Flexible production
Supports switching of multiple glue types and product sizes to meet different production needs.
Can integrate visual systems for automatic positioning and intelligent control.

High efficiency and energy saving
High degree of automation, greatly improving production efficiency and consistency.
Precisely control materials, reduce glue waste, and improve cost performance.

Specification
