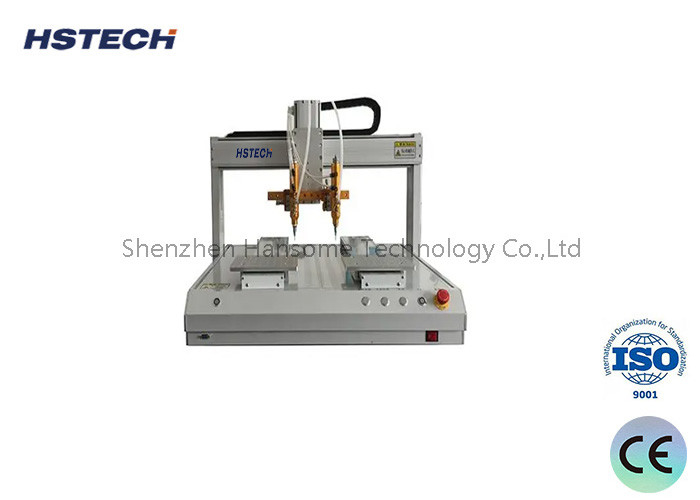

Advanced Teach Pendant Glue Dispensing Machine with Flexible Glue Settings

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Glue Dispensing Machine

Driven System:

Stepper And Timing Belt

XYZ Working Range:

400*400*100mm

XYZ Speed:

Max 300mm/s

Repeat Accuracy:

±0.02mm

Warranty:

1 Year

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Product Description

Teach Pendant Stepping Motor Epoxy Glue Smt Dispenser with Vacuum Device 4Axis Glue dispensing machine

Specification

Model	HS-D441
Power supply	110V/220V 50-60Hz 350W
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision	Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range	400400100mm(Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount±1%, Ratio:±1%
Programming	Teach Pendant
Control	PLC
Leak-proof Function	Valve with Vacuum Device
Document Support	CAD, CorelDRAW
Weight	40kg
Dimension(LWH)	616685645mm

Machine feature

Streamlined LCD interface for easy PC programming & learning.
Comprehensive 3D path creation for various elements & seamless transitions.
Customizable glue settings tailored to specific requirements.
Leak-resistant dispensing system ensures precision & cleanliness.
Versatile application across diverse product surfaces.
Modular design allows for customization with various components.

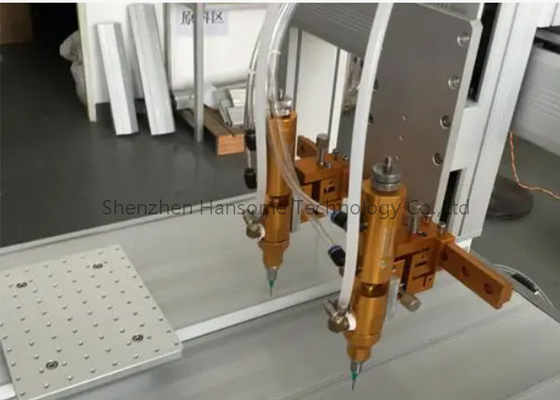

Boost productivity with optional 1-4 head dispenser.
Advanced software with regional display & precise control options.
Enhanced motion control with trapezoidal acceleration, speed previews, & micro-line interpolation.
High-speed, low-noise Japanese stepping motor for precision & longevity.
