| Brand Name: | HSTECH |
| Model Number: | HS-D441 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

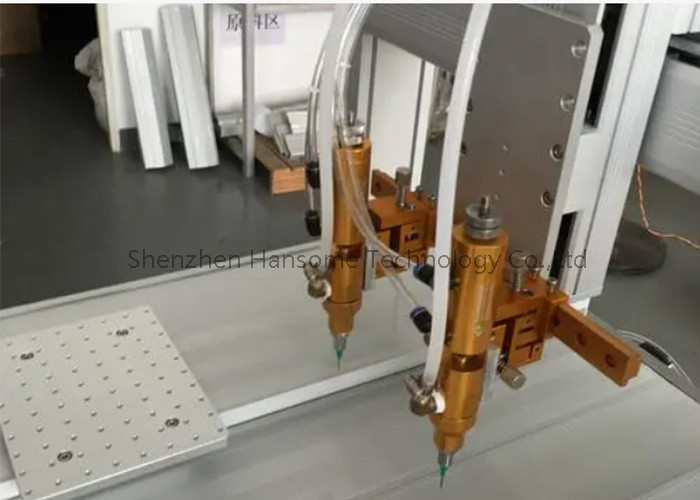

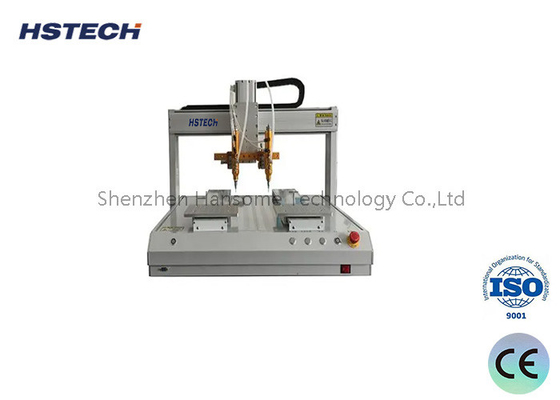

Teach Pendant Stepping Motor Epoxy Glue Smt Dispenser with Vacuum Device 4Axis Glue dispensing machine
Specification
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 40kg |
| Dimension(L*W*H) |
616*685*645mm
|
