| Brand Name: | HSTECH |
| Model Number: | HS-VS400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

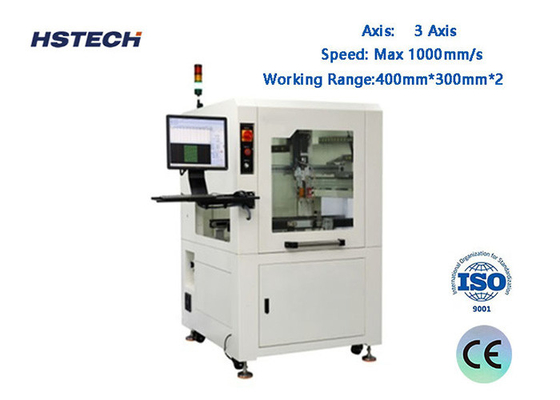

Automatic CCD Positioning Dual Table 3 Axis Visual Glue Dispensing Machine
Product introduction
1.Features an advanced intelligent rapid visual recognition system for seamless identification.
2.User-centric design allows the camera to identify product orientation seamlessly, regardless of its angle, enhancing ease of operation.
3.Runs on Windows XP for a familiar, intuitive interface, facilitating quick learning and efficient use.
4.Leverages hardware-controlled glue dispensing for unparalleled speed and precision, ensuring accuracy in every application.
5.Highly versatile, capable of dispensing a wide range of products including electronics, LEDs, toys, semiconductors, speakers, and security devices, making it an ideal solution for diverse industrial needs.
Machine Specification
| Product name | Visual Glue Dispensing Machine |
| Model | HS-VS400 |
| Transmission height | 920±20mm |
| Table size | 300*400mm |
| Table qty | single or dual table up to customer |
| Fixture | customized |
| CCD resolution | 2.5 μm |
| Max speed | 1000mm/min |
| Glue viscosity range | ≤5000LPS |
| Repeat accuracy | ±0.02mm |
| Recognition accuracy | ±0.0125mil |
| Power supply | AC220/110V,500W |
| Air pressure | 0.5~0.7Mpa |
| Glue tank | 10L,manual stirring |
| Light source | LED light source |
| Linear guide adjustment | Intelligent adjust |
| Programming mode | Manual teaching |
| Software | Windows+dispensing software |
| Spraying method | Automatic |
| Total power | 2.6kW |
| Machine body | Stainless steel |
| Machine weight | 600kg |
| Machine dimension | 1060x1200x1700mm |
