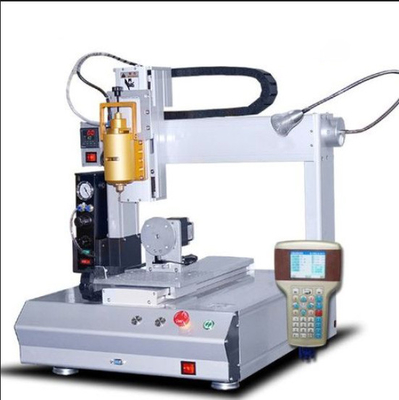

Advanced Glue Dispensing Machine for Inner Outer Wall amp Spherical Surfaces

Brand Name:	HSTECH
Model Number:	HS-D331AB
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

AB Glue Dispensing Machine

Other Name:

4 Axis Glue Dispensing Machine

XYZ Working Range:

300*300*100mm

XYZ Speed:

Max 300mm/s

Glue Mixing Ratio:

1:1-10:1

Dispensing Precision:

Glue Amount±1%, Glue Proportion±1%

Drive System:

Stepping Motor + Timing Belt

Repeat Accuracy:

±0.02mm

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Product Description

PC LCD Screen Operated Glue Dispensing Machine for Wall, Gap & Sphere

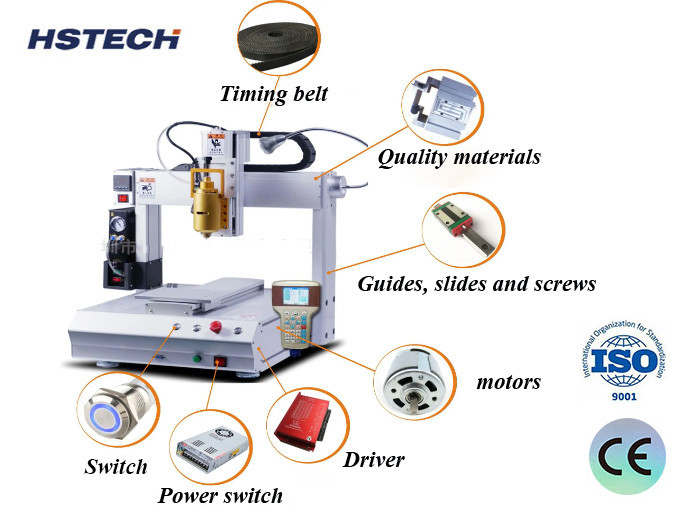

Machine feature

1.User-Friendly LCD Screen Interface: The PC-based LCD screen interface offers a streamlined experience, making it effortless to program and intuitive to learn and operate.
2.Versatile 3D Drawing Capabilities: Equipped with the ability to draw points, lines, faces, arcs, circles, and seamlessly interpolate irregular curves, it realizes any complex 3D non-planar trajectory path, catering to diverse manufacturing requirements.
3.Programmable Glue Dispensing Parameters: Customizable settings for glue volume, dispensing speed, dispensing duration, and stop time ensure precise control over the dispensing process, tailored to each application's unique needs.
4.Stable and Clean Glue Dispensing: The specialized dispensing controller guarantees a stable output, ensuring clean and leak-free glue application, maintaining product quality and reducing waste.
5.Rapid and Accurate Dispensing on Complex Surfaces: Capable of swiftly dispensing glue in the form of dots, lines, and circles on inner and outer walls, vertical surfaces, gaps, and spherical surfaces of products, demonstrating exceptional versatility and precision.
6.Modular and Customizable Design: Depending on customer requirements, the system can be equipped with various accessories such as fixtures, glue guns, controllers, and heating temperature control devices, providing a tailored solution for every application.

Specification

ITEM	SPEC
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision	Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range	300300100mm(Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount±1%, Ratio:±1%
Operation Method	Auto
Programming	Teach Pendant
Control	Board card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimension(LWH)	716585645mm
Power Supply	220V 50-60Hz 350W
