| Brand Name: | HSTECH |
| Model Number: | HS-CC300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

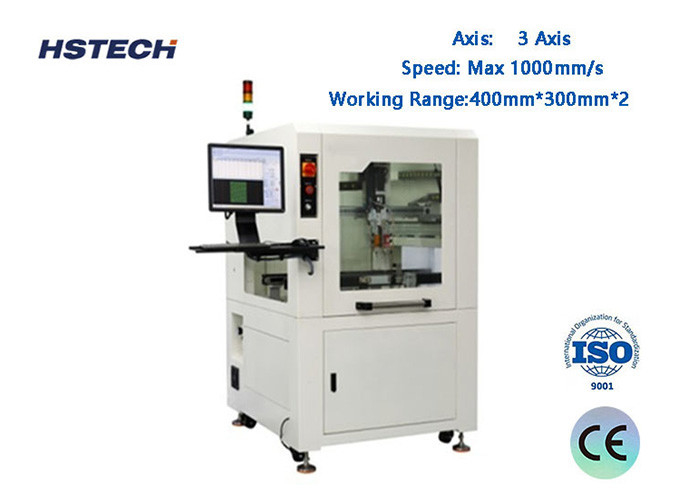

X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine
1.Precision ball screw & Fuji servo motor drive X, Y, Z axes.
2.Enables selective coating for diverse PCBs.
3.Supports straight, circular, arc coating & dispensing patterns.
4.Eliminates spray shadows, ensuring even edge coating.
5.High accuracy at ±0.02mm.
6.Features high-speed, reliable, & stable transmission & control.
7.Automated 2-valve system switches between spray & coating for dense PCB processes.
8.Includes smart auto-width adjustment (based on board width input).

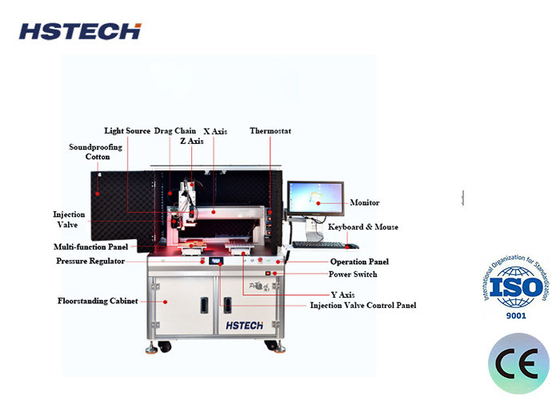

| Product name | Selective conformal coating machine |
| Model | HS-CC300 |
| Transmission height | 920±20mm |
| Conveyor width | 50-450mm/or customized |
| Transmission | L to R, or R to L |
| Component height | up and down max 100mm |
| Size of PCB board edge | ≥5mm |
| Transport speed | 0-12000mm/min |
| 3 Axis drive speed | 800mm/s |
| Repeat accuracy | ±0.02mm |
| Storage programs | up to 1000 |
| Power supply | AC220/110V |
| Air pressure | 4-kgf/cm2 |
| Glue tank | 10L,manual stirring |
| Control mode | Industrial PC+Motion control card |
| Linear guide adjustment | Intelligent adjust |
| Programming mode | Manual teaching |
| Communication port | SMEMA |
| Lighting source | Self-equipped lighting source |
| Detection lighting source | Self-equipped |
| Software | Windows+coating software |
| Driving Motor | Stepper motor(2pcs) |
| 3 axis driving mode | Servo motor+screw driver module+Electric Cylinder |
| Number of rubber valves | 1 spray valve+ 1 dispensing valve |
| Spray width | 3-20mm |
| Spraying method | Automatic |
| Total power | 2.6kW |
| Machine body | Stainless steel |
| Machine weight | 600kg |
| Machine dimension | 1060x1200x1700mm |
