| Brand Name: | HSTECH |
| Model Number: | HS-D441 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

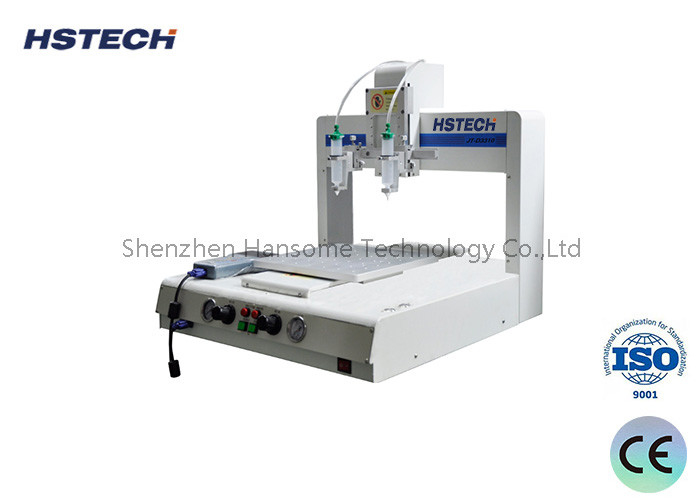

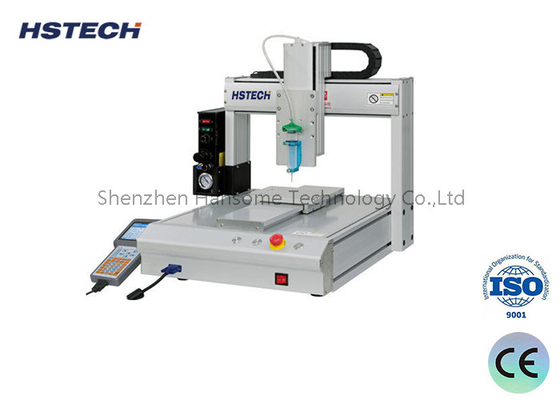

High Precision Teach Pendant Stepping Motor Epoxy Glue Dispensing Machine
Introduction
This screw locking machine uses a teach pendant to lock screws with high precision, improving production efficiency.
1. Simple teach pendant, easy to program.
2. With multi-functional continuous patching, realizing complex three-dimensional trajectory.
3. Dispensing parameterized control, adjustable size, speed and time.
4. Specialized dispensing controller, stable and clean dispensing.
5.Applicable to all kinds of surface fast dispensing, drawing line.
6. Optional fixture, glue gun, etc. to meet customer needs.
7.Multi-head dispensing device, improve work efficiency.
8.Software support area display, pan and rotate and other operations.
9. Adopt trapezoidal acceleration and deceleration and other advanced technology.
10. Equipped with Japanese high speed stepping motor, stable performance.
Translated with DeepL.com (free version)
Specification
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 40kg |
| Dimension(L*W*H) |
616*685*645mm
|
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH) was founded in 2012 by senior EMS engineers. It initially focused on PCB processing equipment and later expanded to PCB splitters and SMT cleaning machines. The company has a professional R&D team and an experienced marketing team. It keeps up with market trends, continues to innovate, and provides cost-effective products to help customers reduce costs and improve efficiency.
