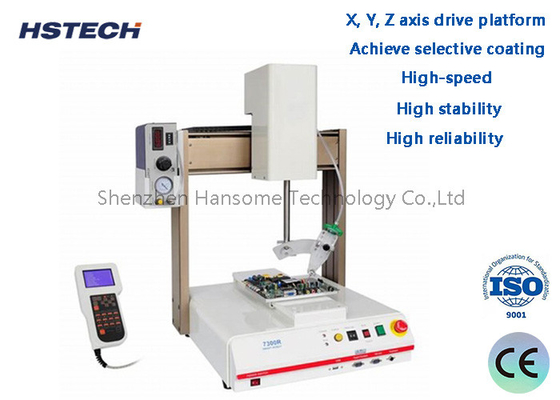

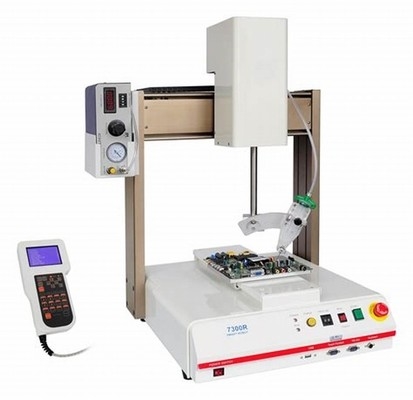

3 Axis Selective Coating Machine Glue Dispensing Machine With Servo Motor Screw Driver Module Electric Cylinder

3Axis Selective Coating Machine Glue Dispensing Machine With Servo Motor Screw Driver Module Electric Cylinder

Introduce

The 3Axis Selective Coating Machine is a device used to precisely coat materials. It achieves coating of specific areas by controlling movement in three axes, and is suitable for various coating applications, such as coatings, glues, sealants, etc.

The following is a general introduction to the 3Axis Selective Coating Machine:

Working principle: 3Axis Selective Coating Machine uses a control system and a motion controller to control the movement of the equipment in three axes (usually X, Y and Z axes). By precisely controlling the position and movement path of the coating head or nozzle, materials can be coated in the desired shape, thickness and uniformity over the target area.

Coating applications: 3Axis Selective Coating Machine is suitable for a variety of coating applications, including electronic assembly, semiconductor packaging, optical devices, automotive parts, medical devices, etc. It can be used to coat protective layers, anti-corrosion layers, conductive coatings, adhesives, sealants, etc. Thanks to its precise control capabilities, high-precision, high-quality coating can be achieved.

Control system: 3Axis Selective Coating Machine is usually equipped with an advanced control system, which can achieve precise adjustment of coating parameters and programming control of motion trajectories. Operators can set and monitor through the user interface, adjusting coating speed, coating thickness, coating area and other parameters. Some models also have a visual guidance system that can monitor and correct the coating position in real time.

Advantages: The 3Axis Selective Coating Machine has some advantages. First, it enables highly precise coating, ensuring uniformity and consistency of coated materials. Secondly, by controlling the movement of the coating head, coating of complex shapes and curved paths can be achieved. In addition, the operator can adjust parameters through the control system and select the coating area according to needs.

Product introduction

1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.

2. Achieve selective coating for various kinds of PCB.

3. Straight line, circle, arc coating and dispensing.

4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.

5. Accuracy: ±0.02mm.

6. With high-speed, high reliability, high stability of the transmission and control system.

7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.

8. With smart automatic width adjustment function (automatically adjust after inputting the board width).

Machine Specification

Dispensing machine classification

1. According to the classification of operation mode, it can be divided into: manual dispensing equipment, semi-automatic dispensing equipment, and fully automatic dispensing equipment.

2. According to the glue, it can be divided into: single liquid dispensing equipment, double liquid dispensing equipment, multi-component dispensing equipment, etc.

3. According to the classification, it can be divided into: thread dispensing equipment, speaker dispensing equipment, mobile phone button dispensing equipment, patch dispensing equipment, board wiper, etc.

4. According to the characteristics of glue, it can be divided into: silicone glue dispensing equipment, UV glue dispensing equipment, and SMT red glue dispensing equipment.

5. According to the number of control axes, it can be divided into: two-axis dispensing equipment, three-axis dispensing equipment, four-axis dispensing equipment, etc.
