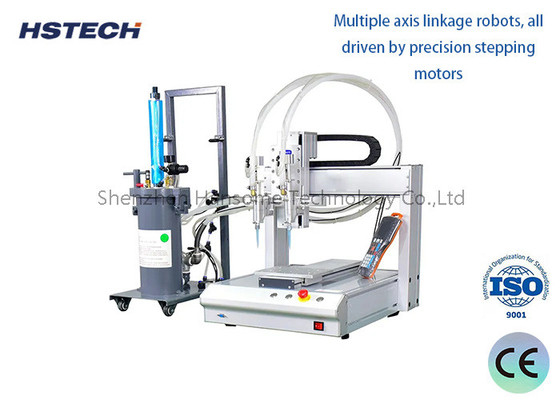

High Speed 4 Axis AB Glue Dispensing Machine With Stepping Motor And Timing Belt

Max 300mm/s 4 Axis AB Glue Dispensing Machine with Stepping Motor and Timing Belt

Introduce

The glue dispensing machine, also known as glue coating machine, glue dripping machine, glue dispensing machine, glue filling machine, etc., specializes in controlling fluids. The automated machine that drips and coats the fluid on the surface of the product or inside the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise glue control, and no stringing, no glue leakage, and no glue dripping. The dispensing machine is mainly used to accurately point, inject, apply and drip glue, paint and other liquids in the product process to the precise position of each product. It can be used to realize dotting, drawing lines, circles or arcs.

working principle

1. Working principle: Compressed air is fed into the glue bottle (syringe), and the glue is pressed into the feed pipe connected to the piston chamber. When the piston is in the upper stroke, the piston chamber is filled with glue. When the piston pushes downward, the glue is dispensed. When the needle is pressed, the glue is pressed out from the needle tip. The amount of glue dripped out is determined by the distance of the piston's downstroke, which can be adjusted manually or automatically controlled in the software.

2. Features: high speed, low sensitivity to glue viscosity.

3. Advantages: It can increase the dispensing speed, improve the dispensing environment, and improve the dispensing quality.

Features
It can replace manual work and realize mechanized production; it can be operated by a single machine, simple, convenient, high-speed and accurate; SD card storage method facilitates data management and file transfer between machines; it can be equipped with a two-component pumping system to form a two-liquid fully automatic Dispensing machine; it can be equipped with dispensing controllers, dispensing valves and other accessories to form a floor-standing dispensing equipment; it can be equipped with a screw locking mechanism and configured as an automatic screw locking machine; it can be upgraded to an online robot as needed for various applications Automated assembly; strong carrying capacity and large processing space.

Application industry
Electronics, lighting, automotive, industrial electrical, solar photovoltaic, construction engineering ect.

Specification
