| Brand Name: | HSTECH |
| Model Number: | HS-VD331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

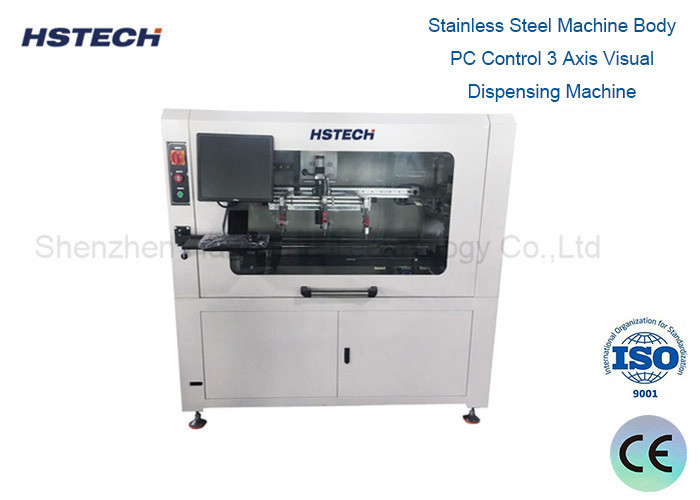

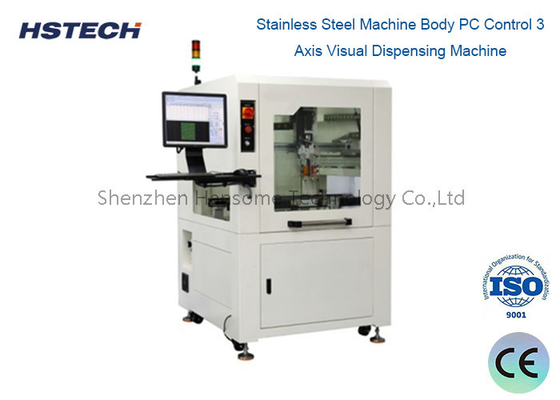

1000mm/s XYZ speed Stepper motor Visual Glue Dispensing Machine
Introduction:
A Visual Glue Dispensing Machine is an advanced device used in manufacturing processes to apply adhesives and sealants with high precision. These machines are especially prevalent in industries such as electronics, automotive, and packaging.
Specification
| Model | HS-VD331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| Air pressure | 0.5-0.7Mpa |
| Light source | LED source |
| X/Y/Z working range | 400mm*300mm*2 |
| XYZ speed | 1000mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Gule viscosity range | max≤5000LPS |
| Motor | Stepper motor |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | CSK(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Operation system | Windows |
| Gross weight | 600kg |
