| Brand Name: | HSTECH |
| Model Number: | HS-CC300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

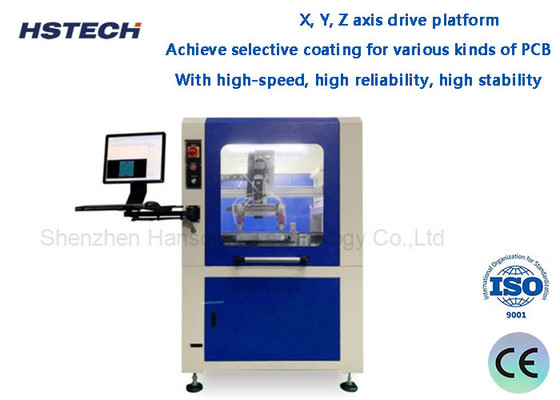

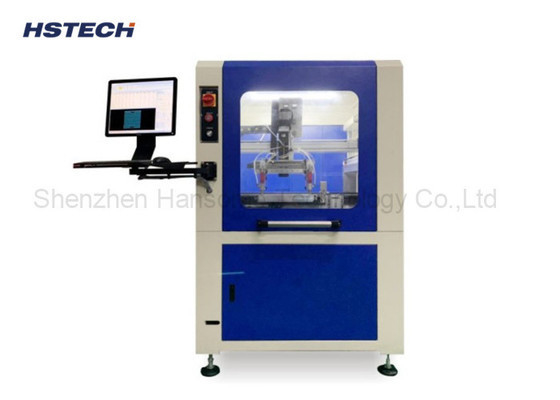

X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine
1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.
2. Achieve selective coating for various kinds of PCB.
3. Straight line, circle, arc coating and dispensing.
4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.
5. Accuracy: ±0.02mm.
6. With high-speed, high reliability, high stability of the transmission and control system.
7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.
8. With smart automatic width adjustment function (automatically adjust after inputting the board width).
| Product name | Selective conformal coating machine |
| Model | HS-CC300 |
| Transmission height | 920±20mm |
| Conveyor width | 50-450mm/or customized |
| Transmission | L to R, or R to L |
| Component height | up and down max 100mm |
| Size of PCB board edge | ≥5mm |
| Transport speed | 0-12000mm/min |
| 3 Axis drive speed | 800mm/s |
| Repeat accuracy | ±0.02mm |
| Storage programs | up to 1000 |
| Power supply | AC220/110V |
| Air pressure | 4-kgf/cm2 |
| Glue tank | 10L,manual stirring |
| Control mode | Industrial PC+Motion control card |
| Linear guide adjustment | Intelligent adjust |
| Programming mode | Manual teaching |
| Communication port | SMEMA |
| Lighting source | Self-equipped lighting source |
| Detection lighting source | Self-equipped |
| Software | Windows+coating software |
| Driving Motor | Stepper motor(2pcs) |
| 3 axis driving mode | Servo motor+screw driver module+Electric Cylinder |
| Number of rubber valves | 1 spray valve+ 1 dispensing valve |
| Spray width | 3-20mm |
| Spraying method | Automatic |
| Total power | 2.6kW |
| Machine body | Stainless steel |
| Machine weight | 600kg |
| Machine dimension | 1060x1200x1700mm |
