| Brand Name: | HSTECH |
| Model Number: | HS-VD331 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

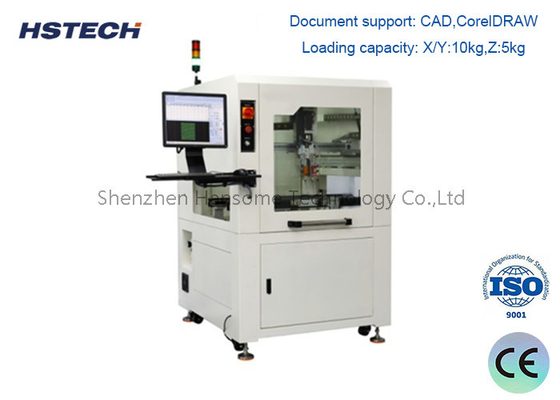

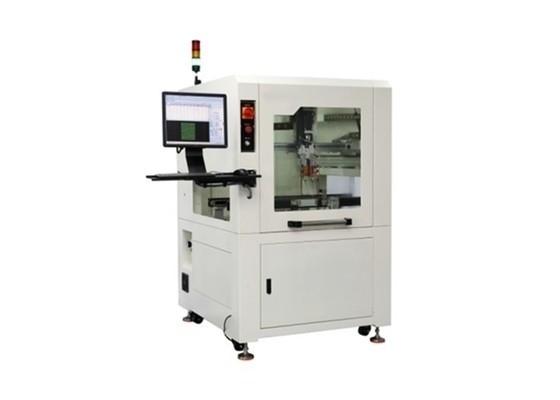

SMT Equipment High Speed Automatic PCB/LED Lens Adhesive Intelligent CCD Visual Glue Dispenser
Features
1. Special injection dispensing system, CCD system automatically corrects product positioning, which has significant advantages in dispensing efficiency.
2. XY axis are equipped with high-speed linear motor to achieve high-precision parts dispensing and high-speed dispensing efficiency.
3. Use a thick marble platform to ensure smoothness at high speed dispensing.
4. Support high-speed injection valve to achieve faster and more accurate dispensing, thus broa dening the scope of application.
5. The system is specially designed for the Lens assembly of LED Bars and the fully automated online jet dispensing system developed by the electronics industry for high precision dispensing applications.
6. With the chain conveying function, it can effectively dock the front and rear end stations.
Specification
| Model | HS-VD331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| Air pressure | 0.5-0.7Mpa |
| Light source | LED source |
| X/Y/Z working range | 400mm*300mm*2 |
| XYZ speed | 1000mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Gule viscosity range | max≤5000LPS |
| Motor | Stepper motor |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | CSK(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Operation system | Windows |
| Gross weight | 600kg |
