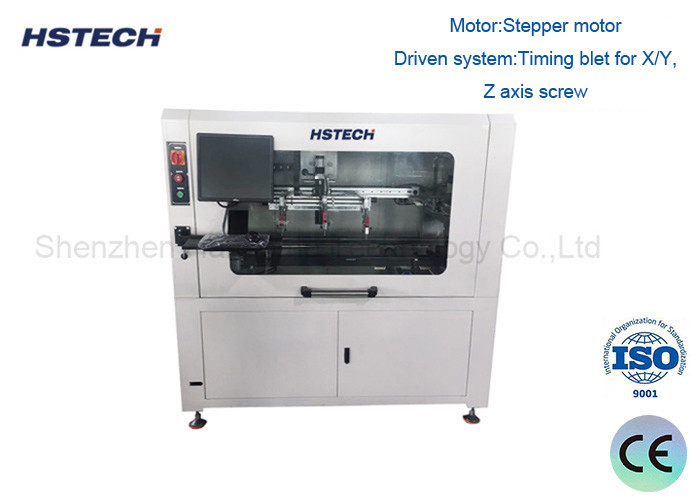

Stainless Steel Machine Body PC Control 3 Axis Visual Dispensing Machine
Specification
| Model | HS-VD331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| Air pressure | 0.5-0.7Mpa |
| Light source | LED source |
| X/Y/Z working range | 400mm*300mm*2 |
| XYZ speed | 1000mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Gule viscosity range | max≤5000LPS |
| Motor | Stepper motor |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | CSK(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Operation system | Windows |
| Gross weight | 600kg |
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
