| Brand Name: | HSTECH |
| Model Number: | HS-D331AB |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

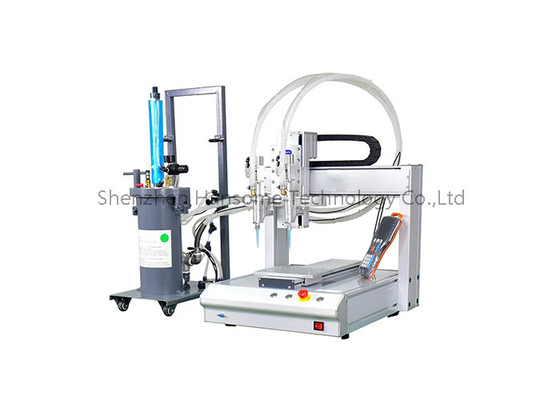

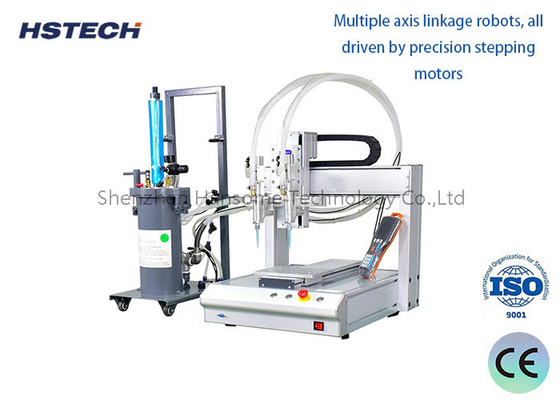

High-Speed Glue Dispensing Fixture with Siemens PLC for X/Y/Z Working Range
Specification
| ITEM | SPEC |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 300*300*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Operation Method | Auto |
| Programming | Teach Pendant |
| Control | Board card |
| Leak-proof Function | Valve with Vacuum Device |
| Weight | 65kg |
| Dimension(L*W*H) | 716*585*645mm |
| Power Supply | 220V 50-60Hz 350W |
Adapt to glue
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw glue, etc.
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
