| Brand Name: | HSTECH |
| Model Number: | HS-BD4 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
| Model | HS-BD4 |
| MCU | Industrial PLC |
| Programming | Text Demonstration Programmer |
| Drive mode | Precise Stepping Motor |
| Max Dispensing Diameter | 160mm(two station),110mm(four station) |
| Motor Speed | 0 ~ 300 RPM |
| Positioning Accuracy | ±0.1mm |
| Z-axis Adjust Range | 250mm |
| Z-axis Working Travel | 50mm |
| Dimension (L*W*H) | 420mm*532mm*532mm |
| Weight | 35Kg |
| Working Power | AC220V/50~60Hz/200W |
| Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |

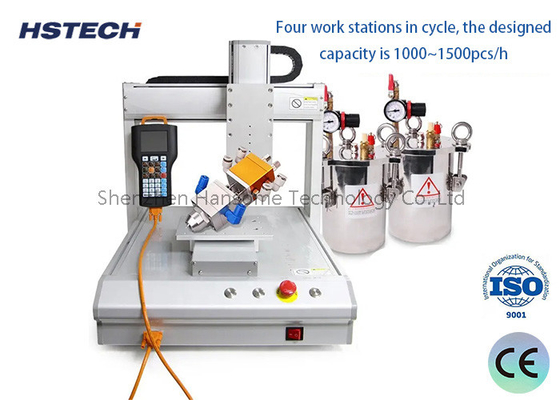

1. Four workstations form a loop, with a designed capacity of 1000-1500pcs/h.
2. Equipped with a workpiece detector, it can determine whether to apply glue or jump glue.
3. The glue coating trajectory can be set as a whole circle, single point, or segmented arc, etc.
4. The working mode can be four stations or two stations.
5. The touch screen and buttons are easy to learn and operate, and different settings ensure optimal performance for different adhesives.
