| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

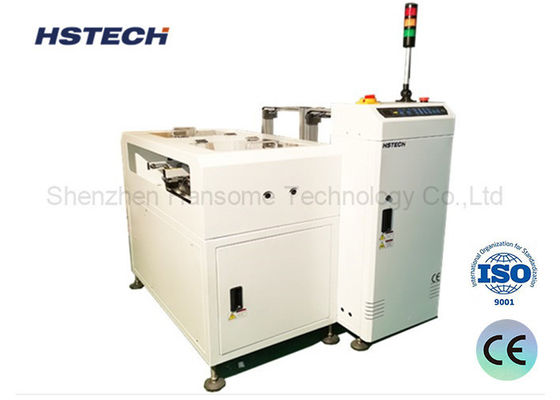

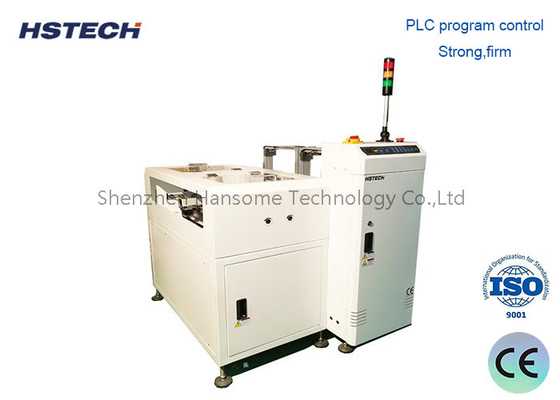

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
Upon completion of the Automated Optical Inspection (AOI) process, this unit operates efficiently by capturing inspection signals from the prior stage. It then automatically divides the PCBs into two groups: non-conforming (NG) and conforming (OK), and subsequently directs them to their appropriate storage locations. This process ensures a well-organized and highly efficient sorting of the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features
PLC Control:
The system employs a PLC for precise and dependable functionality.
User-Friendly Interface:
An intuitive LED membrane panel featuring soft-touch buttons simplifies control.
Pitch Mechanism Adjustability:
Effortlessly accommodates a wide range of PCB sizes and configurations.
Toggle Clamps:
Provide secure magazine alignment, ensuring stable PCB placement.
Pneumatic Pusher System:
Pressure-controlled to ensure gentle and non-destructive board handling.
Optimized Production Efficiency:
Enhanced magazine changeovers boost manufacturing throughput.
Automated NG/OK Sorting:
Seamlessly integrates with AOI for efficient inspection and categorization tasks.
SMEMA Communication Interface:
Facilitates smooth integration into production lines through SMEMA protocol, enabling seamless communication and data interchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
