| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

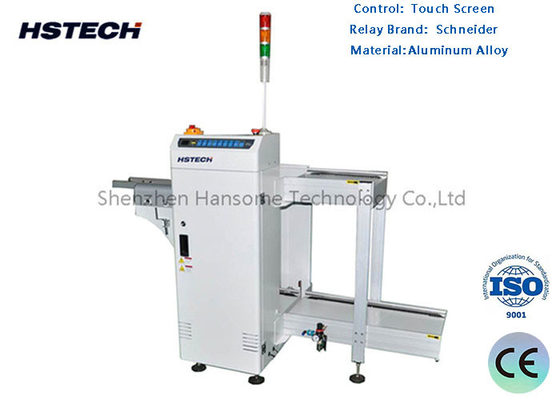

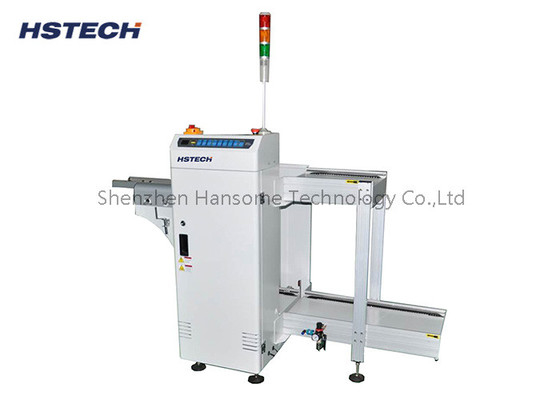

High Quality Smooth And Parallel Width PCB Unloader NG OK Unloader Each Rail 2 Magazines After The AOI
Introduce
A PCB Unloader is a device used in automated electronic manufacturing processes to unload finished printed circuit boards (PCBs) from the production line and transfer them to the next processing stage or storage area.
PCB Unloader has the following features and functions:
1.Unloading and transfer function: The PCB Unloader removes the processed PCB from the production line through automated machinery and transfers it to the next processing stage or storage area. It can unload and transfer PCBs via conveyor belts, slides or other conveyor systems to ensure a continuous production process.
2.Alignment and Positioning: PCB Unloader can align and position PCBs to ensure correct placement on the next processing stage or storage area. It may include sensors and positioning devices to detect the position and orientation of the PCB and make necessary adjustments and calibrations.
3.Control and scheduling: PCB Unloader usually has a control system that can reasonably schedule and distribute PCBs according to production plans and process requirements. It delivers PCBs to the appropriate location based on availability and priority for the next processing stage or storage area and ensures smooth running of the production line.
4.Smart Detection and Processing: Some advanced PCB Unloaders may come with smart detection and processing features. They can detect PCB quality, size, defects, etc. and classify and process them according to preset rules. For example, unqualified PCBs may be subjected to special treatment or alarm prompts.
5.Connect to other equipment: PCB Unloader usually has the ability to connect with other automation equipment and systems, such as PCB Loader (PCB loader), electronic inspection system, storage system, etc. This connectivity enables seamless and efficient operation of the entire production process.
Features
1, PLC programing control.
2, Using friendly ‘soft touch’ LED membrane control panel
3, Selectable pitch setting.
4, Toggle level clamps provided for magazine alignment.
5, Pneumatic pusher’s pressure regulated.
6, High throughput with short magazine change-over time.
7, Collect NG/OK board from AOI, automatic store the NG/OK boards.
8, Standard SMEMA communication interface.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.
|
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
