High-Precision Control Cards 4 Axis Motion Control Offline PCB Router Machine for PCB Assembly

High Quantity 4 Axis Motion Control Offline PCBA Router Machine For PCB Assembly Line

 Introduction:

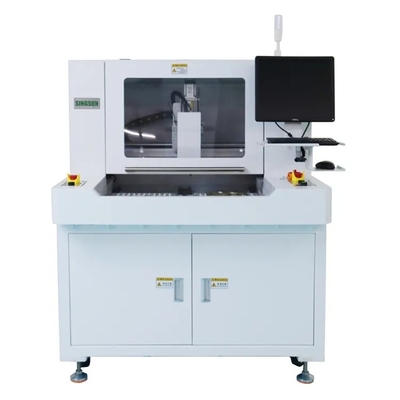

The RM-F550 is a newly engineered Router Machine tailored for dividing complete printed circuit board assemblies (PCBA) into individual components. It boasts a highly stable platform that guarantees precision in its operations, with a standard working area of 300*350mm.

Moreover, the machine offers an optional, expanded platform size of 400*600mm to accommodate diverse PCBA dimensions. For enhanced user experience, the RM-F550 features intuitive "visual" programming, enabling swift and accurate online configuration. Additionally, it offers real-time monitoring during the depaneling process for added control and efficiency.

Main features:

1. We offer our clients industrial equipment that stands out with its high performance, exceptional stability, and robust security, attributes made possible by the integration of high-precision linear guides, control cards, and servo motors that assure top-tier functionality.
2. Our state-of-the-art 4-axis motion control system leverages high-resolution CCD visual alignment technology and a dual-platform design, substantially boosting production efficiency.
3. The routing spindle, sourced from Germany, operates within a speed range of 40,000 to 60,000 RPM, ensuring precise and efficient cutting capabilities.
4. The moving system incorporates guides from Taiwan's renowned Hiwin brand, guaranteeing both precision and seamless operation.
5. Our equipment is equipped with tool life monitoring, which automatically transitions to an unused blade once the cutter has traversed a preset distance, thereby optimizing tool utilization and prolonging tool lifespan.
6. This adaptable machine is capable of depaneling boards with straight-line, arc, and circular connections, accommodating a diverse range of PCB shapes and sizes.
7. The PCB substrate undergoes a two-stage continuous sliding process, minimizing downtime and maximizing overall production capacity.

Key Features

Precision Cutting Technology:
This technology is engineered to precisely cut and separate individual PCBs from larger panels while minimizing potential damage.

Offline Operational Mode:
Operating independently from the main production line, this mode offers flexible setup and usage options without disrupting ongoing manufacturing processes.

Intuitive User Interface:
Many models feature a touchscreen interface, facilitating easy programming and smooth operation.

Versatile Cutting Techniques:
The machine supports a multitude of cutting methods, such as routing, laser cutting, and knife cutting, tailored to its specific configuration.

Effective Dust Extraction Systems:
Integrated systems efficiently minimize dust and debris during the cutting process, ensuring a clean and safe operational environment.

Broad Material Compatibility:
This versatile machine is capable of handling a variety of materials, including FR-4, aluminum, and flexible PCBs, showcasing its wide range of applications.

Automated Capabilities:
Certain models incorporate automated features like automatic height adjustment and tool changes, further enhancing operational efficiency.

Benefits

Increased Efficiency:
Automation of PCB cutting reduces manual labor and accelerates the production process.

Quality Control:
High-quality cuts are ensured, minimizing the risk of defects in the final product.

Flexibility:
Quick adjustments in production runs can be made without extensive reconfiguration of the main assembly line.

Cost-Effectiveness:
Minimizes waste and enhances overall production efficiency, contributing to cost savings.

Applications:

Electronics Manufacturing:
Widely utilized in the manufacture of consumer electronics, automotive parts, and industrial machinery.

Prototyping:
Ideal for swiftly prototyping PCBs prior to large-scale production.

Sepcfication:
