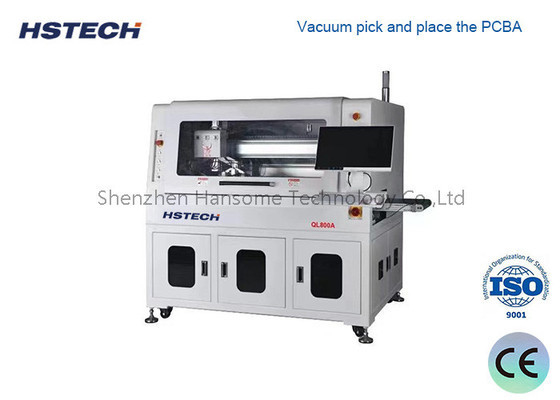

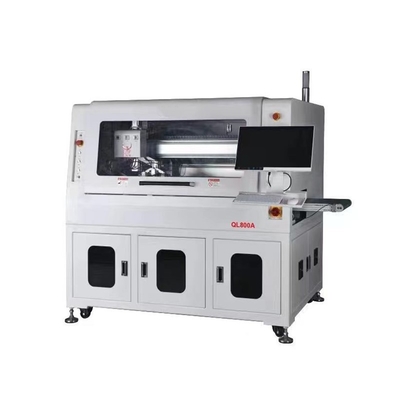

High-Performance PCB Router Machine for Fast and Accurate Cutting
Introduction
This machine is a inline automatic PCBA routing machine,the PCBA fixed with jig for automatic bottom side routing, and after routing the machine use the nozzle suction to pick and place the PCBA with jig together, it used for separating the stamp hole, curve PCB, and other irregular connected PCBs.
Features
1.Automated operation: The PCB splitter adopts an automated control system, which can achieve automated cutting processes. The operator only needs to set the parameters and cutting path, and the machine can work according to the predetermined method, improving production efficiency and accuracy.
2.High precision cutting: The PCB splitter adopts advanced cutting technology, which can achieve high-precision cutting. It can cut PCB boards into precise shapes and sizes according to preset circuit contours and size requirements, ensuring the quality and consistency of each board.
3.Multifunctionality: PCB splitters typically have multiple cutting modes and tools, which can adapt to different types of PCB boards and cutting needs. For example, it can perform linear cutting, V-shaped cutting, circular cutting, etc. to meet the cutting requirements of boards with different shapes.
4.High efficiency and cost savings: The automated operation and high-precision cutting ability of PCB splitters enable them to achieve efficient production. It can quickly and accurately complete cutting tasks, saving manpower and time costs. At the same time, it can also reduce errors and damages caused by manual operations, improve production quality and reliability.
5.Flexibility and adjustability: PCB splitters have high flexibility and adjustability. Operators can adjust cutting parameters according to actual needs to adapt to different types and sizes of PCB boards. This makes it suitable for the needs of small batch production and customized production..
Technical details
| Model | QL800A | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwarding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programming | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Bottom size routing and dust collector
Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.
Omnipotence vacuum suction chuck for picking, placing , unloading, and production.
Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
