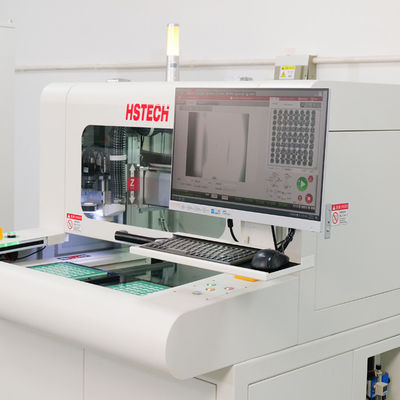

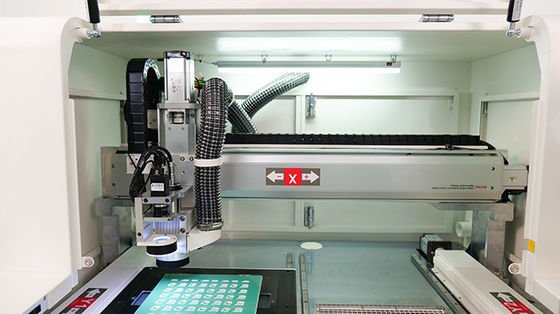

Twin Table Automatic Spindle Bit Routing PCBA Depaneling Router Machine
Main Features
1.Chinese/English software operation system
2.German brand Basler high speed camera whole board photography programming mode
3.Equipped with auto routing tool(bit) changing,break tool detection, tool height correction function
4.Dual table work continuously to improve production efficiency
Specification
| Machine Model | RT350 | RT360 | RT360A | RT380A |
| PCB cutting size | 340*360MM | 340*360MM | 340*360MM | 350*250MM |
| Cutting object | Lines, points, arcs, circles, etc | Lines, points, arcs, circles, etc | Lines, points, arcs, circles, etc | V-groove,stamp hole,circular point,etc |
| Cutting table | Twin table | Twin table | Twin table | Twin table |
| Cutting accuracy | ±0.08MM | ±0.05MM | ±0.05MM | ±0.05MM |
| Repeat accuracy | ±0.015MM | ±0.01MM | ±0.01MM | ±0.01MM |
| Max axis moving speed | X,Y1,Y2:1000mm/s,Z axis:800mm/s | X,Y1,Y2:1000mm/s,Z axis:800mm/s | X,Y1,Y2:1000mm/s,Z axis:800mm/s | X,Y1,Y2:1000mm/s,Z axis:800mm/s |
| Spindle | Chinese brand | Chinese brand/NSK spindle (optional) | Japan NSK/Germany Sycotec | V-blade+chinese brand spindle |
| Tool change mode | Manual tool change | Manual tool change | Automatic | Manual tool change |
| Spindle routing speed | MAX:60000rpm | MAX:60000rpm | MAX:60000rpm | MAX:60000rpm |
| Tool detection | Automatic tool sinking, tool breaking | Automatic tool sinking, tool breaking | Automatic tool sinking, tool breaking and sliding tool detection | Automatic tool sinking, tool breaking and sliding tool detection |
| Cutting speed | 5～100mm/s adjustable | 5～100mm/s adjustable | 5～100mm/s adjustable | 5～100mm/s adjustable |
| PCB cutting thickness | 0.3-3.0MM | 0.3-3.0MM | 0.3-3.0MM | 0.3-3.0MM |
| Programming method | Whole panel photography,picture drawing line teaching | Whole panel photography,picture drawing line teaching | Whole panel photography,picture drawing line teaching | Whole panel photography,picture drawing line teaching |
| Control method | PC precision 4 axis control | PC precision 6 axis control | PC precision 6 axis control | PC precision 6 axis control |
| X,Y1,Y2,Z driven motor | Chinese brand servo driver | PanasonicA6 servo driver | PanasonicA6 servo driver | PanasonicA6 servo driver |
| Suitable routing bits size | 0.8～3.0MM | 0.8～3.0MM | 0.8～3.0MM | 0.8～3.0MM |
| Power supply | AC220V 50/60HZ single phase | AC220V 50/60HZ single phase | AC220V 50/60HZ single phase | AC220V 50/60HZ single phase |
| Machine size |
L*W*H (1180mm*1180mm*1350mm) |
L*W*H (1180mm*1180mm*1350mm) |
L*W*H (1180mm*1180mm*1350mm) |
L*W*H (1180mm*1180mm*1350mm) |
| Machine weight | 800kg | 800kg | 800kg | 800kg |
| Dust cleaner power | 3HP | 3HP | 3HP | 3HP |
| Dust cleaer power supply | AC380V 3 phase | AC380V 3 phase | AC380V 3 phase | AC380V 3 phase |
| Dust clear size |
L*W*H (665mm*635mm*1610mm) |
L*W*H (665mm*635mm*1610mm) |
L*W*H (665mm*635mm*1610mm) |
L*W*H (665mm*635mm*1610mm) |
| Dust cleaner weight | 155kg | 155kg | 155kg | 155kg |
| Dust cleaning method | Top side/bottom size cleaning (optional) | Top side/bottom size cleaning (optional) | Top side/bottom size cleaning (optional) | Top side/bottom size cleaning (optional) |
Main features
1.Device Information
Displays machine status information, including usage of cameras, light sources, tools, etc.
2.Program Editor
In this mode, the cutting line can be edited quickly and accurately through the image teaching method.
3.System Program
In this mode, the user only needs to set the starting point and end point, and the machine will automatically complete the entire cutting process.
4.Position Correction
In this interface, you can set the position. When the position is reached, the machine will automatically detect and stop.
5.Manual Mode
In this mode, the user can manually control various actions of the machine, including X/Y axis movement, tool rotation, etc.
6.Maintain settings
In this interface, you can view the machine's work log, including production date, working hours, fault records, etc.
7.Process Parameters
In this interface, you can set various parameters of the machine, including camera parameters, light source parameters, tool parameters, etc.
Advantages
Twin table through the German high speed camera to execute the whole board photography then programming, totally different with traditional programming method.Great reduce the programming time.
Equipped with auto routing tool(bit) changing,break tool detection, tool height correction function.
Automatic tool correction function to avoid height deviation problems when changing tools
Double tabletops work continuously to maximize machine productivity

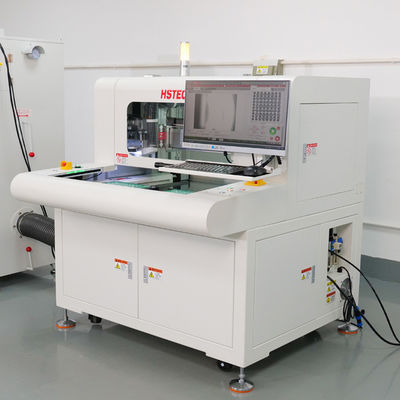

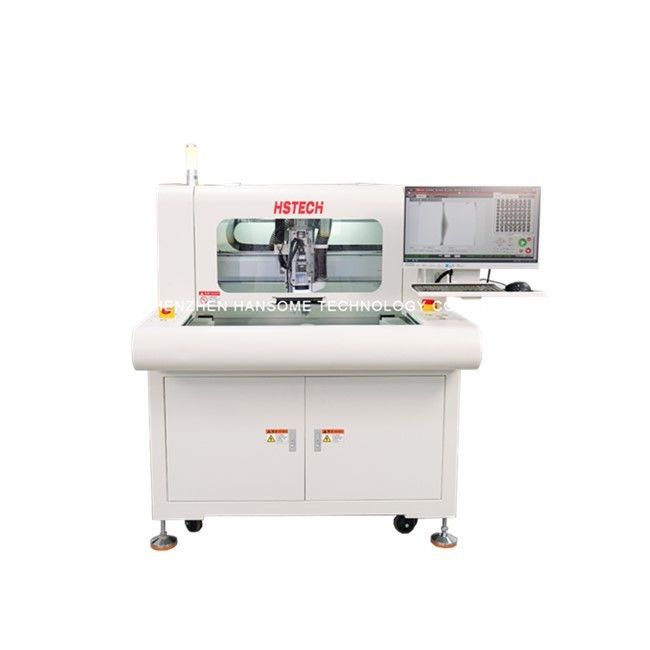

Machine Body and Dust Collector
