Flexible Operation 4 Axis Motion Control Offline PCBA Router Machine For PCB Assembly Line
Offline PCBA Router Machine:
This machine RM-F550 is a new developed Router Machine. It is used to depaneling a whole printed circuit board assemblies (PCBA) into individual PCBa boards. The machine adopt a very stable platform to ensure the working precision, the working platform size is 300*350mm.
It has a larger platform option at 400*600mm.The machine provides user friendly "visual" programming for rapid and accurate online programming,also can detect the depaneling process.
Main features
1, Provide customers a high performance,high stable and security industrial equipment, using high precision linear guide, control card, and servo motor.
2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.
3, Germany brand routing spindle, speed at 40000~60000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.
6, Suitable for depaneling straight line, arc, and circular connectted boards.

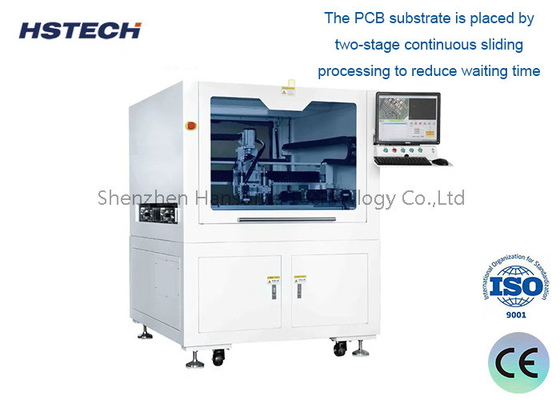

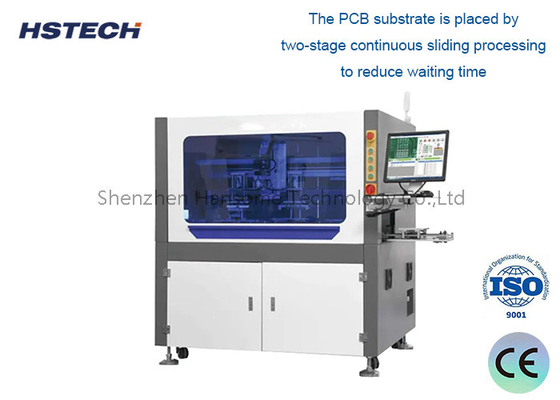

7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.
Offline independent work:
The equipment can work independently without connecting to a computer or other external devices.
Built-in powerful control system and program storage function, support storage of up to 100 processing programs.
High-precision cutting:
Adopting high-speed rotating spindle and three-axis servo positioning system, it can achieve positioning accuracy of ±0.05mm.
Equipped with automatic material clamping and clamping device to ensure the stability of the cutting process.
Diversified processing:
Support cutting and processing of various materials such as PCB and metal.
Tools of different specifications can be used according to needs to meet various processing requirements.
Automated process:
Equipped with intelligent control system, it can automatically adjust cutting parameters such as speed and feed.
Support program editing, process optimization, data statistics and other functions to improve production efficiency.
Safe and reliable:
The equipment adopts a fully enclosed design with safety protection measures.
Equipped with emergency stop button to ensure the safety of the operation process.
Easy to maintain and operate:
Adopting large display screen and intuitive operation interface, it is easy to use.
Equipped with removable door panels and internal maintainable parts for daily maintenance and repair
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
| PCB Router Machine | |||
