PCB Router Machine with Scrap Collect Efficiently Cut and Separate PCBs Using Milling Cutter

Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine

Introduce

The PCB Router Machine stands as a highly utilized tool within the realm of printed circuit board (PCB) cutting and separation. Below is a detailed overview of its features and functionalities:

Designed specifically for precise cutting and efficient PCB separation, this machine leverages advanced technologies to ensure accurate and dependable outcomes across various manufacturing settings. Featuring a sturdy construction and an intuitive control system, it integrates smoothly into production lines, ultimately boosting overall productivity and quality.

Equipment Composition:

The PCB Router Machine encompasses several vital components: a frame, a workbench, cutting tools, a control and monitoring system, along with a motion control system. The frame acts as the structural backbone, offering stability and support. The workbench firmly holds the PCBs during the cutting process. Guided by the control system, the cutting tools perform the separation tasks according to predefined parameters, while the system continuously monitors the process. Furthermore, the motion control system ensures precise and accurate movements of the tools.

Automated Cutting:

By utilizing preset cutting paths, speeds, depths, and other parameters, the PCB Router Machine automates the cutting process, thereby minimizing manual intervention and enhancing both productivity and precision.

Versatile Cutting Techniques:

This machine is adaptable to various cutting methods, including linear, V-shaped, circular, and other customized approaches, catering to the diverse designs of PCBs.

Precision in Cutting:

Employing precise tools and advanced technology, the PCB Router Machine guarantees cutting accuracy in accordance with the preset paths and specifications, ensuring consistent quality.

Deburring Capability:

After cutting, the PCB Router Machine possesses the ability to deburr the edges, effectively removing burrs and residues. This enhances both the quality and aesthetic appeal of the PCBs.

Efficiency and Cost-Effectiveness:

The automated operation and precision cutting capabilities of the PCB Router Machine expedite production, reducing the need for human resources and time. Additionally, it minimizes waste and damage, leading to cost savings.

Specification

Features

High-Speed Cutting:

The PCB Router Machine excels in rapid cutting, making it an economically viable option for large-scale production runs, regardless of quantity.

Precision Alignment:

Utilizing a touchscreen interface, the machine precisely sets the cutting distance, accurately aligning with V-slots in PCBs to guarantee flawless cutting strokes.

Panel Splitting with Stress Minimization:

During panel splitting, the PCB Router Machine employs a combination of moving and stationary blades, minimizing stress on PCBs. This effectively prevents fractures at welding points and preserves structural integrity.

Static PCB, Dynamic Blade Operation:

In the splitting process, the PCB remains stationary while the blade moves, ensuring consistent quality and precision in each cut.

Enhanced Efficiency and Quality:

Compared to manual operation, the machine significantly reduces stress on welding spots, resulting in improved working efficiency and superior product quality.

Adjustable Cutting Distance:

With a flexible cutting distance range spanning from 1 to 100 meters, the PCB Router Machine accommodates diverse customer requirements and enhances operational efficiency.

Customizable Starting Position:

The ability to freely set the starting cutting position allows for optimized cutting patterns, contributing to the machine's durability and extending its lifespan.

Counting Function for Advanced Data Management:

Equipped with a counting feature, the PCB Router Machine facilitates comprehensive post-production data analysis and reporting, enhancing production management and traceability.

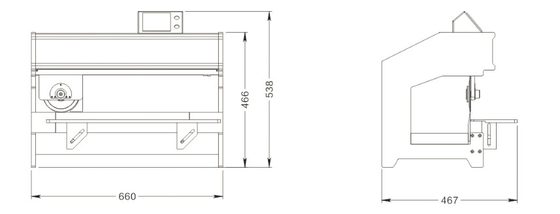

Machine Size
