| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |

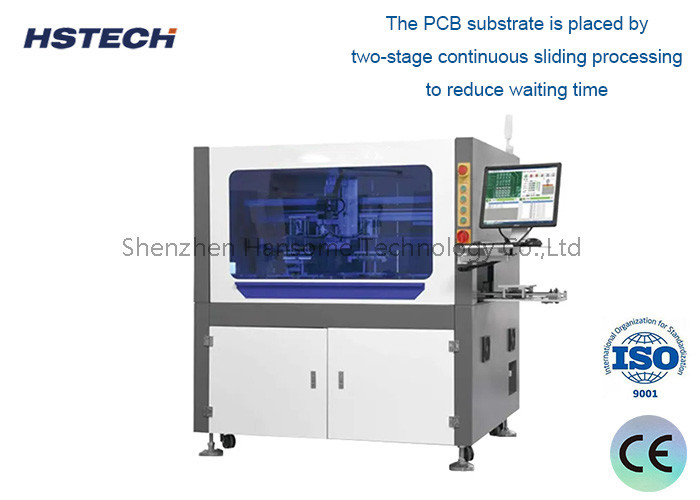

Double Platform PCB Router Machine for Depaneling Straight Line and Arc Boards
Machine introduction
The PCB Board Cutting Machine is tailored for automated cutting of PCBA circuit boards after component insertion. It stands out with its X and Y two-directional automatic v-cutting features, which greatly boost the board's processing efficiency compared to traditional manual single-direction v-cutting methods.
Main features
Premium Craftsmanship: Crafted from high-speed tungsten steel, the circular knife exemplifies robustness and unparalleled precision.
Efficiency Boost: The dual slide-in mechanism minimizes cutting interruptions, thereby enhancing overall production throughput.
Flexible Programming: The machine offers customizable cutting modes, encompassing individual routing and circular cutting programs, as well as combined programs for ultimate versatility.
Automated Vision Alignment: The vision system automatically detects and aligns MARCK or optical points, ensuring precision in every cut.
Automated Routing Monitoring: Featuring an automatic check and alert system, it includes a preset cutting duration limit (100H), prompting users to replace tools as needed.
Superb Knife Craftsmanship: The circular knife, made of high-speed tungsten steel, once again underscores its exceptional quality.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Machine details
