| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
Introduction
Designed with precision and efficiency in mind, this inline automatic PCBA routing machine employs a jig-based system to stabilize the PCBA during bottom-side routing operations. After the routing process is completed, an advanced nozzle suction mechanism lifts and positions the PCBA, along with its jig, as a single unit. This innovative feature enables the machine to handle stamp holes, curved PCBs, and a variety of other irregular PCB configurations, ultimately optimizing workflow efficiency and enhancing productivity.
Features
Technical details
| Model | QL800A | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwarding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programming | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Bottom size routing and dust collector
An outstanding CCD system, featuring an imaging camera, Moritex lens, and a high-precision light source for measurement, is tailored to facilitate machine calibration, compensation, and precise positioning. This system demonstrates exceptional stability and strong resistance to disturbances.

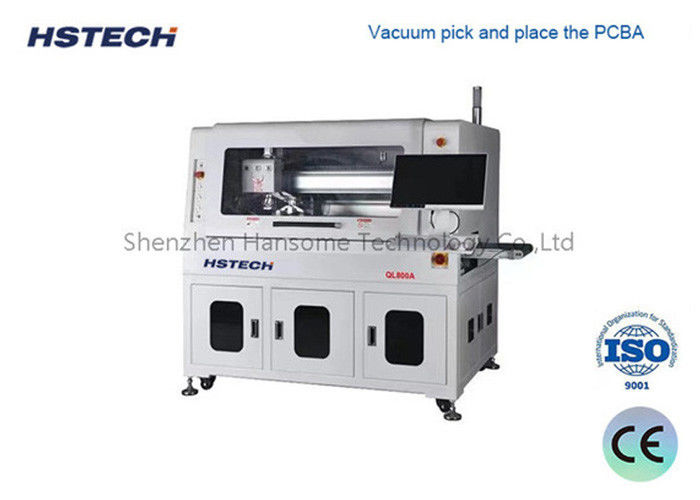

Omnipotence vacuum suction chuck for picking, placing , unloading, and production.
The composite unloading system utilizes an ESD anti-static belt to convey the separated product on the top side, while simultaneously transporting waste on the bottom side, thereby conserving considerable space.
