| Brand Name: | HSTECH |
| Model Number: | VM-400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |

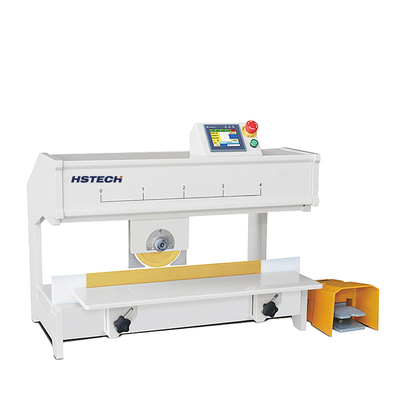

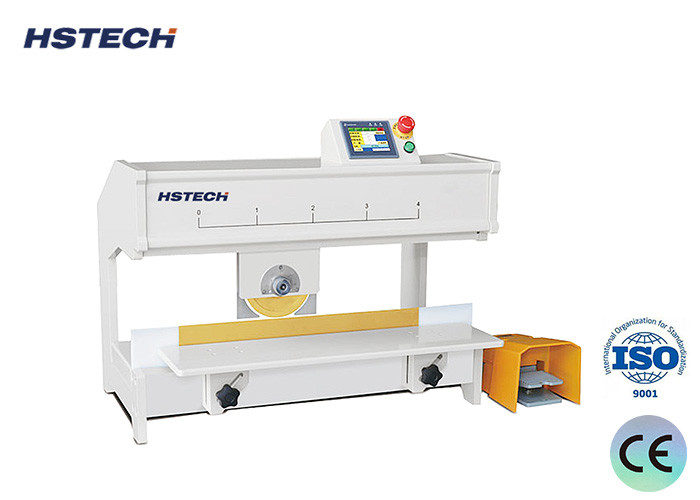

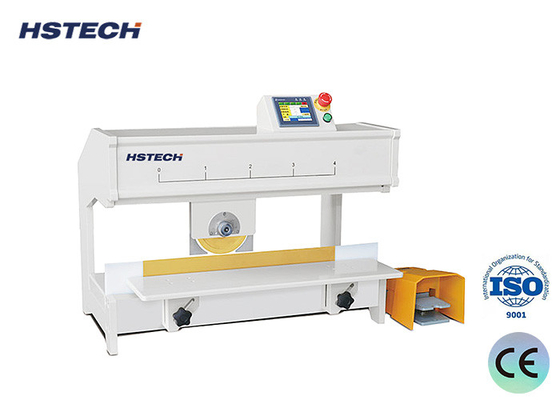

Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine
Introduce
The PCB Router Machine is a highly utilized tool in the realm of printed circuit board (PCB) cutting and separation. Below is a detailed summary of its features and capabilities:
Designed specifically for precise cutting and efficient separation of PCBs, this machine leverages advanced technologies to ensure accurate and dependable results across various manufacturing settings. With its sturdy construction and intuitive control system, it integrates smoothly into production lines, ultimately boosting overall productivity and quality.
Equipment Composition:
The PCB Router Machine is composed of several key components: a frame, a workbench, cutting tools, a control and monitoring system, and a motion control system. The frame acts as the structural backbone, providing stability and support. The workbench securely holds the PCBs during the cutting process. The cutting tools, guided by the control system, carry out the separation tasks based on predefined parameters, while the system monitors the process in real-time. Additionally, the motion control system ensures precise and accurate movements of the tools.
Automated Cutting:
The PCB Router Machine automates the cutting process by utilizing preset cutting paths, speeds, depths, and other parameters, reducing the need for manual intervention and enhancing both productivity and precision.
Versatile Cutting Methods:
This machine can adapt to various cutting techniques, including linear, V-shaped, circular, and other customized methods, accommodating the diverse designs of PCBs.
Precision Cutting:
The PCB Router Machine employs precise tools and advanced technology to ensure cutting accuracy according to the preset paths and specifications, guaranteeing consistent quality.
Deburring Capability:
The PCB Router Machine has the ability to deburr the edges after cutting, effectively removing burrs and residues, which improves both the quality and aesthetic appeal of the PCBs.
Efficiency & Cost-Effectiveness:
The automated operation and precision cutting capabilities of the PCB Router Machine expedite production, minimizing the need for human resources and time. Furthermore, it minimizes waste and damage, leading to cost savings.
Specification
| Model | VM-400 | VM-600 | ||||||
| Machine Dimension | 420x520x860mm | 620x720x1060mm | ||||||
| Voltage | 220V 50/60Hz | 220V 50/60Hz | ||||||
| Max Cutting Length | 400mm | 600mm | ||||||
| PCB Thickness | 0.8~3mm | 0.8~3mm | ||||||
| Separation speed | 600mm/second | 600mm/second | ||||||
| Separation type | Circular blade/linear blade | Circular blade/linear blade | ||||||
| Components height | 0~70mm | 0~70mm | ||||||
| Working temperature | 30~55℃ | 30~55℃ | ||||||
| Weight | 50kg | 60kg |
Features
High-Speed Cutting:
The PCB Router Machine excels in rapid cutting, rendering it economically feasible for large-scale production runs, regardless of the quantity.
Precision Alignment:
Using a touchscreen interface, the machine sets the cutting distance with precision, accurately aligning with V-slots in PCBs to ensure flawless cutting strokes.
Panel Splitting with Stress Minimization:
During panel splitting, the PCB Router Machine employs a combination of moving and stationary blades to minimize stress on PCBs. This effectively prevents fractures at welding points and preserves structural integrity.
Static PCB, Dynamic Blade Operation:
In the splitting process, the PCB remains stationary while the blade moves, ensuring consistent quality and precision in each cut.
Enhanced Efficiency & Quality:
Compared to manual operation, the machine significantly reduces stress on welding spots, resulting in improved working efficiency and enhanced product quality.
Flexible Cutting Distance:
With an adjustable cutting distance range spanning from 1 to 100 meters, the PCB Router Machine accommodates diverse customer needs and boosts operational efficiency.
Customizable Starting Position:
The machine's ability to freely set the starting cutting position allows for optimized cutting patterns, contributing to its durability and extending its lifespan.
Counting Function for Comprehensive Data Management:
Equipped with a counting feature, the PCB Router Machine facilitates detailed post-production data analysis and reporting, improving production management and traceability.

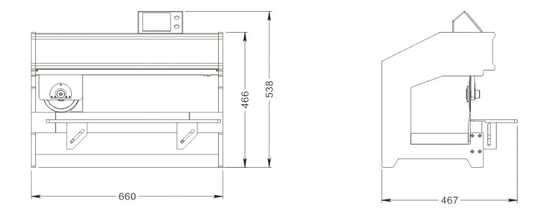

Machine Size
