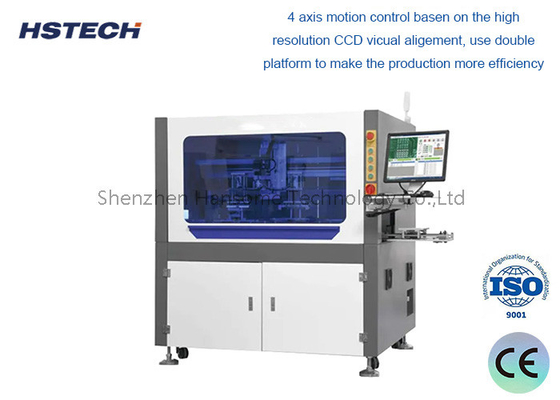

Double Platform PCB Router Machine for Depaneling Straight Line and Arc Boards
Machine introduction
The PCB Board Cutting Machine is specifically designed for automated cutting of PCBA circuit boards post-component insertion. It distinguishes itself with its X, Y two-directional automatic v-cutting capabilities, significantly enhancing the board's processing efficiency compared to traditional single-direction manual v-cutting methods.
Main features
Premium Craftsmanship: The circular knife is constructed from high-speed tungsten steel, ensuring robustness and unparalleled precision.
Efficiency Enhancement: The dual slide-in mechanism minimizes cutting disruptions, thus boosting overall production capacity.
Flexible Programming Capabilities: The machine offers customizable cutting modes, including individual routing and circular cutting programs, as well as combined cutting programs for maximum versatility.
Automated Vision Alignment: The vision system automatically detects and aligns MARCK or optical points to guarantee precision.
Automatic Routing Oversight: Equipped with an automatic check and alert system, it includes a preset cutting duration limit (100H), reminding users to replace tools as required.
Exceptional Knife Quality: The circular knife, crafted from high-speed tungsten steel, once again demonstrates its superior quality.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
