| Brand Name: | HSTECH |
| Model Number: | AR-7 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
High Speed Mini Offline PCBA Router Machine for Small Size PCB with Flexible Cutting
Introduction:
This equipment is a specialized routing machine, specifically designed for small-scale or individual production of PCBA (Printed Circuit Board Assembly). Its primary function is to carry out precise cutting and segmentation operations on PCBs with components already installed, ensuring the highest level of accuracy. Leveraging advanced CNC (Computer Numerical Control) technology, the machine achieves exceptional precision and repeatability in its tasks.
Features:
Autonomous Offline Separation:
Operating independently, this system ensures seamless and efficient automatic PCB separation, optimizing workflows and minimizing operational downtime.
Compact PCBA Router:
Perfect for small PCBs, this router not only fits snugly in confined factory spaces but also offers cost-effective and space-saving production solutions.
Customizable Fixtures:
These fixtures guarantee compatibility and stability across diverse PCB designs and sizes, facilitating precise processing.
Integrated PC and CCD Vision System:
Equipped with a high-precision PC-controlled system and a CCD vision system, this setup allows for accurate alignment and monitoring of the cutting process, ensuring exceptional precision.
Programmable with Compensation and Integrated Dust Management:
Advanced programming capabilities, including compensation functions, adjust for minor inaccuracies, maintaining peak performance. The integrated dust management system keeps the workspace tidy and debris-free.
Handles PCBs from 410-510mm:
Designed to accommodate PCBs ranging from 410 to 510mm, this router offers versatility and scalability to meet various production needs.
Dual-Product Cutting Capability:
Its versatility allows for the cutting of two different product types on the same machine, enhancing efficiency and reducing the need for specialized machinery.
Flexible Operation Platform:
Featuring an open platform design, the router facilitates easy manual feeding and unloading. Optionally, it can be integrated with a robotic arm for fully automated operations, boosting productivity and minimizing labor costs.
Specification:
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindel/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programing | Visioin teaching, inline programing | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |

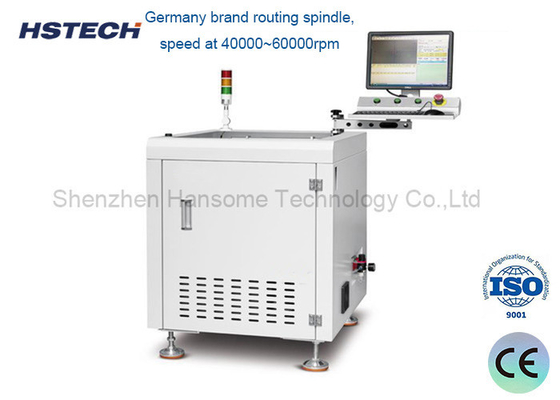

| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |

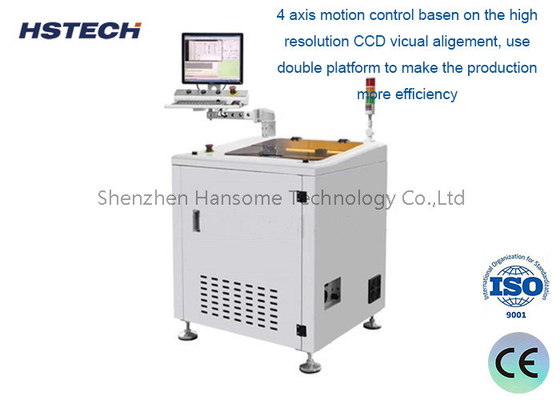

| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industril camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen |
17inch
|
|
Typical application scenarios:
Personal or Small-Scale DIY Electronic Projects: Ideal for crafting your own PCB circuit boards tailored to personal or small-scale DIY electronic endeavors.
Small-Batch PCBA Production: Perfect for swift prototyping and limited production runs, catering to the requirements of small-scale manufacturers and innovative minds.
PCB Cutting and Segmentation for Repairs and Upgrades: Excellent for precisely cutting and segmenting PCBs during repairs or enhancements of electronic gadgets, ensuring efficient and precise modifications.
Educational Use in Teaching Laboratories: A vital resource in teaching labs, empowering students to acquire hands-on experience and deepen their comprehension of PCBA processing techniques.
