| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
Introduction

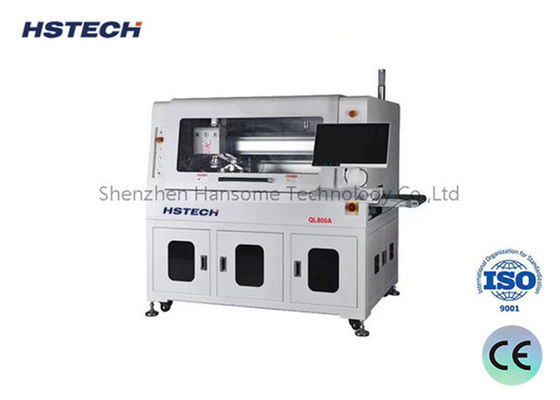

Built with precision and efficiency in mind, this inline automatic PCBA routing machine employs a jig-based system to stabilize the PCBA during the bottom-side routing process. After routing, an advanced nozzle suction mechanism lifts and precisely positions the PCBA, along with its jig, as a unified entity. This innovative capability enables the machine to handle stamp holes, curved PCBs, and various other non-standard PCB configurations, ultimately optimizing workflows and enhancing productivity.
Features
Technical details
| Model | QL800A | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwarding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programming | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Bottom size routing and dust collector
An outstanding CCD system, featuring an imaging camera, a Moritex lens, and a high-precision light source for measurement, is tailored to facilitate machine calibration, compensation, and precise positioning. This system demonstrates exceptional stability and strong resistance to external disturbances.

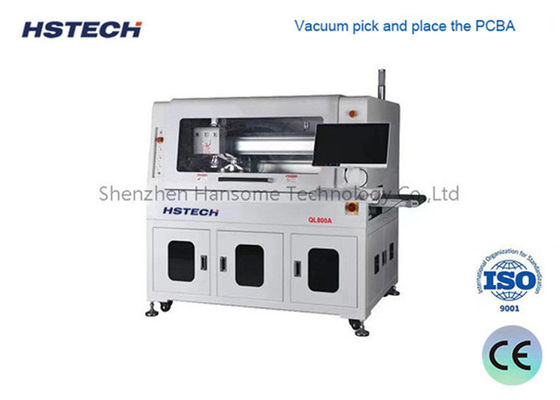

Omnipotence vacuum suction chuck for picking, placing , unloading, and production.
A composite unloading system utilizes an ESD anti-static belt to convey the separated product on the upper side, while simultaneously transporting waste on the lower side, thereby conserving considerable space.
