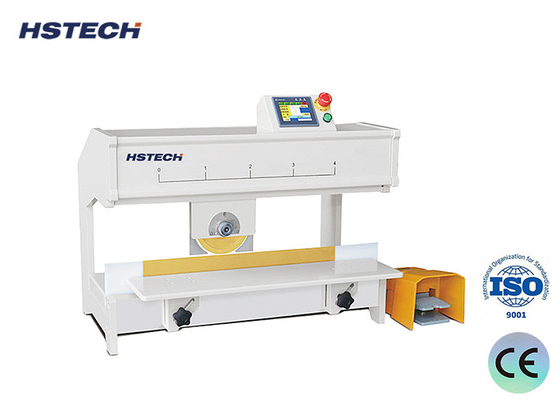

White PCB Router Machine Upgrade Your Manufacturing Process With Scrap Collect Dust Collector

Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine

Introduce

The PCB Router Machine is a highly utilized tool in the domain of printed circuit board (PCB) cutting and separation. Below is a comprehensive overview of its features and capabilities:

This machine is tailored for precise cutting and efficient separation of PCBs, utilizing cutting-edge technologies to deliver accurate and reliable results across diverse manufacturing environments. Boasting a robust construction and intuitive control system, it integrates seamlessly into production lines, ultimately enhancing overall productivity and quality.

Equipment Composition:

The PCB Router Machine comprises several essential components: a frame, a workbench, cutting tools, a control and monitoring system, as well as a motion control system. The frame serves as the structural backbone, providing stability and support. The workbench securely holds the PCBs in position during the cutting process. The cutting tools, guided by the control system, execute the separation tasks based on predefined parameters while the system monitors the process in real-time. Additionally, the motion control system ensures the precise and accurate movements of the tools.

Automated Cutting:

The PCB Router Machine automates the cutting process through the use of preset cutting paths, speeds, depths, and other parameters, thereby reducing the reliance on manual intervention and enhancing both productivity and precision.

Versatile Cutting Methods:

This machine is capable of adapting to various cutting techniques, such as linear, V-shaped, circular, and other customized methods, accommodating the diverse designs of PCBs.

Precision Cutting:

The PCB Router Machine utilizes precise tools and advanced technology to ensure cutting accuracy in accordance with the preset paths and specifications, thereby guaranteeing consistent quality.

Deburring Capability:

The PCB Router Machine possesses the capability to deburr the edges after cutting, effectively removing burrs and residues. This improves both the quality and aesthetic appeal of the PCBs.

Efficiency & Cost-Effectiveness:

The automated operation and precision cutting capabilities of the PCB Router Machine accelerate production, minimizing the need for human resources and time. Furthermore, it minimizes waste and damage, resulting in cost savings.

Specification

Features

High-Speed Cutting:

The PCB Router Machine excels in rapid cutting, making it economically viable for large-scale production runs, irrespective of the quantity.

Precision Alignment:

Through a touchscreen interface, the machine sets the cutting distance with precision, aligning accurately with V-slots in PCBs to ensure flawless cutting strokes.

Panel Splitting with Stress Minimization:

The PCB Router Machine uses a combination of moving and stationary blades during panel splitting, minimizing stress on PCBs. This effectively prevents fractures at welding points and maintains structural integrity.

Static PCB, Dynamic Blade Operation:

During the splitting process, the PCB remains stationary while the blade moves, ensuring consistent quality and precision in each cut.

Enhanced Efficiency & Quality:

Compared to manual operation, the machine significantly reduces stress on welding spots, leading to improved working efficiency and product quality.

Adjustable Cutting Distance:

With a flexible cutting distance range of 1 to 100 meters, the PCB Router Machine caters to diverse customer requirements and enhances operational efficiency.

Customizable Starting Position:

The ability to set the starting cutting position freely allows for optimized cutting patterns, contributing to the machine's durability and extending its lifespan.

Counting Function for Advanced Data Management:

Equipped with a counting feature, the PCB Router Machine facilitates comprehensive post-production data analysis and reporting, improving production management and traceability.

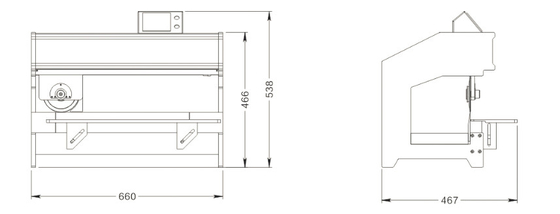

Machine Size

About Packaging

About Us

Founded in 2012, Shenzhen HanSome Technology Co., Ltd. (HSTECH) is led by a highly experienced engineer with a profound background in the EMS industry. Since its establishment, the company has specialized in the development and manufacturing of PCB processing equipment, gradually expanding its portfolio to encompass the production of PCB strippers and SMT cleaning machines. At the helm of HSTECH is a proficient and ambitious R&D team that is relentlessly committed to exploring and adopting the latest industry technologies. This is complemented by a seasoned marketing team with a strong export focus, ensuring that HSTECH remains agile in capturing market dynamics and aligning its products with evolving market needs.

HSTECH has consistently adhered to the principle of innovative development, achieving significant technological and product advancements throughout its journey. Our mission is to provide cost-effective solutions that empower our customers to boost productivity while minimizing both costs and labor. In solidarity with our customers, we strive together towards a prosperous future.

HSTECH aspires to embody "High Quality and Smartness," aligning with our "Quality-Oriented and Customer-Centric" philosophy. We incorporate industry-specific features and pursue smart technology to bring the vision of smart factories to life. In terms of after-sales service, we uphold the principle of "Responsibility," promptly addressing any quality feedback and consistently delivering exceptional service to our valued customers.
