| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
After completing the Automated Optical Inspection (AOI) process, this unit operates efficiently by receiving inspection signals from the previous stage. It automatically segregates the PCBs into two categories: non-conforming (NG) and conforming (OK), and then routes them to their respective designated storage locations, ensuring a highly efficient and streamlined sorting of the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features
PLC Control:
The system utilizes a PLC for accurate and reliable operation.
User-Friendly Interface:
An intuitive LED membrane panel with soft-touch buttons allows for simple and straightforward control.
Adjustable Pitch Mechanism:
Adapts easily to accommodate a variety of PCB sizes and configurations.
Toggle Clamps:
Ensure stable PCB placement by providing secure magazine alignment.
Pneumatic Pusher System:
Pressure-controlled to guarantee gentle handling and prevent damage to the boards.
High Production Efficiency:
Optimized magazine changeovers enhance manufacturing throughput and productivity.
Automated NG/OK Sorting:
Integrates effortlessly with AOI for efficient and streamlined inspection and categorization.
SMEMA Communication Interface:
Supports seamless integration into production lines via SMEMA protocol, facilitating smooth communication and data exchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |

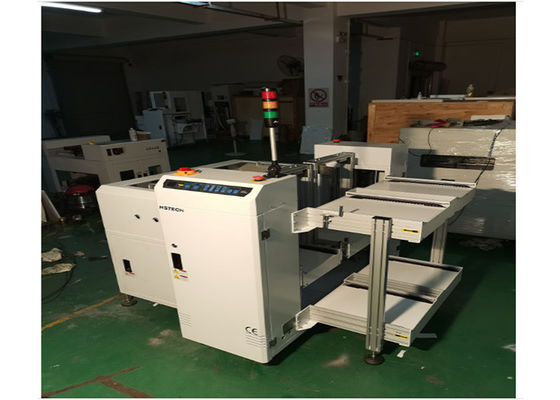

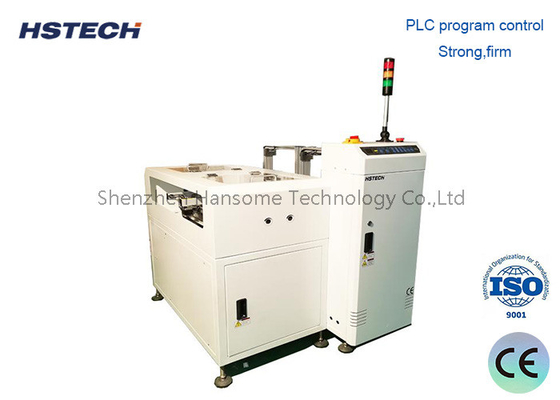

The Product and Details
About Packaging
About Us
Shenzhen HanSome Technology Co., Ltd. (HSTECH), established in 2012, is headed by a seasoned engineer with extensive experience in the EMS industry. From its inception, the company has specialized in the development and production of PCB processing equipment, subsequently broadening its scope to include the manufacturing of PCB strippers and SMT cleaning machines. HSTECH boasts a proficient and ambitious R&D team dedicated to continuously exploring cutting-edge industry technologies. Complemented by an export-focused and seasoned marketing team, HSTECH accurately captures market dynamics to ensure its products remain in sync with evolving market demands.
Throughout its journey, HSTECH has upheld the principle of innovative development, consistently achieving technological and product breakthroughs. We are dedicated to offering cost-effective products that empower our customers to enhance productivity while minimizing costs and labor. Hansheng Technology stands in solidarity with its customers, striving together for a brighter future.
HSTECH has set its sights on achieving "High Quality and Smartness," aligning with the "Quality-Oriented and Customer-Centric" philosophy while incorporating industry-specific features and pursuing smart technology for the realization of smart factories. Regarding after-sales service, we adhere to the principle of "Responsibility," promptly responding to any quality feedback and consistently serving our customers.
