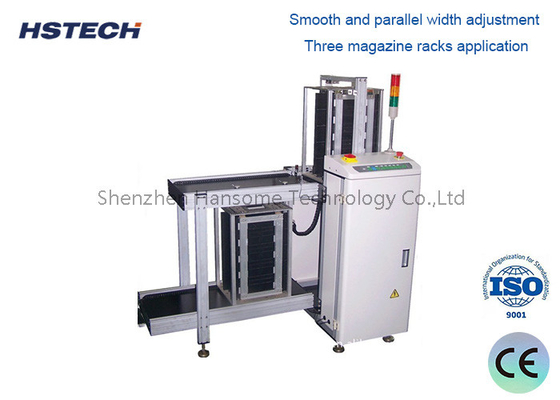

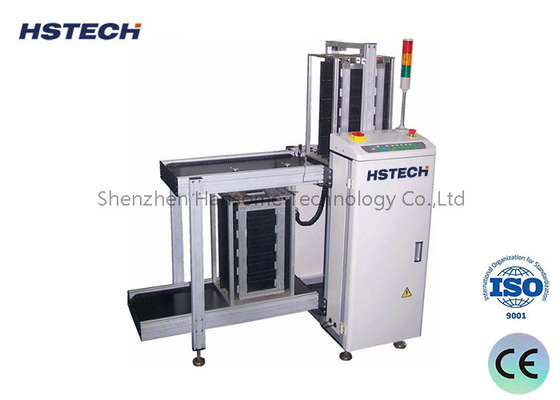

Module Right Angle Design PCB Loader for Flexible Adaptation to Different Production Line Layouts

Short Length Touch Screen Control 90 degree Type PCB Linking Loader Machine

Application

Specifically designed for the initial stages of SMT production lines, this 90-degree PCB loader effectively conveys PCBs from storage racks to the production line. Its compact design is particularly advantageous for optimizing limited factory space.

Features

1. Modular Right-Angle Design: The loader's 90-degree design allows for versatile integration into various production line layouts, thereby enhancing overall production efficiency.
2. Compact Footprint: With a body length of just 1200mm, and an even more compact 900mm option available, this loader maximizes space utilization in the factory and accommodates various production line sizes.
3. Adaptable Pusher System: Featuring a flexible, foldable PCB pusher, it ensures smooth and secure PCB transportation, minimizing the risk of damage.
4. Expanded Magazine Storage: Capable of holding 4 or 3 magazines simultaneously, it offers ample PCB storage capacity to maintain production line continuity and stability.
5. Width Adjustment Capability: The loader's smooth and parallel width adjustment system accommodates different PCB sizes, ensuring precision and stability during loading.
6. SMEMA Compliance: Compatible with SMEMA standards, this machine facilitates seamless integration with other SMT production equipment, boosting the entire production line's automation level.

Specification
