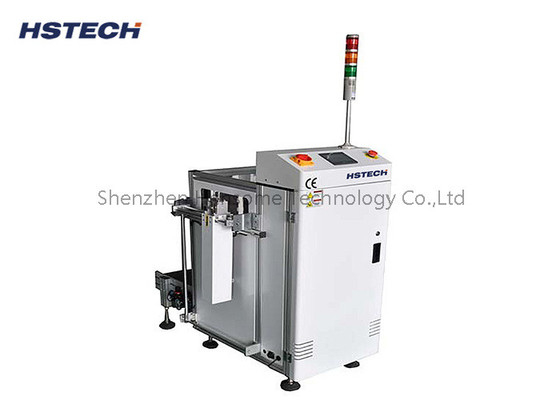

High-Precision 4-6 Bar Multiple Magazine PCB Loader SMT Board Loading Machine For Production Line
Introduce
Multiple Magazine PCB Loader is a device for automatic loading, mainly used in the production and testing process of printed circuit boards (PCB).
Multi-tray design:
The equipment is equipped with multiple independent PCB trays or magazines
PCB boards of different models or batches can be loaded at the same time
Through automatic switching, different types of PCB boards can be quickly replaced
Automatic loading:
The equipment is equipped with automated devices such as robotic arms or conveyor belts
PCB boards can be automatically grabbed from the tray and sent to the SMT production line
High efficiency:
Up to 20-30 PCB boards can be loaded at a time
Automatic loading speed can reach 10-15 pieces per minute
The loading efficiency of PCB boards has been greatly improved
Precise positioning:
Equipped with a precise positioning system
Ensure the precise positioning of each PCB board on the production line
Intelligent control:
Simple operation is achieved through the human-computer interaction interface
Can be linked with the production management system to achieve intelligent scheduling
Easy maintenance:
Modular design, easy maintenance and inspection
Low energy consumption, low noise, suitable for production workshop environment
Features

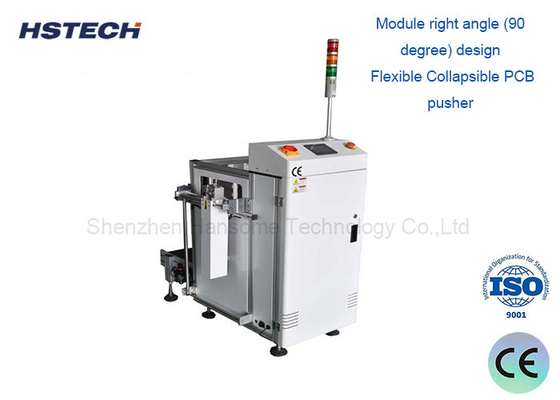

1, Module right angle (90 degree) design.
2, Very short 1200mm length, optional shorter 900mm machine length.
3, Flexible Collapsible PCB pusher.
4, 3 magazines available.
5, Smooth and parallel width adjustment.
6,SMEMA compatible.
Application scenarios:
SMT production line: automatic loading during patch and reflow soldering processes.
Testing link: Automatic loading and positioning in front of the testing equipment.
Sample production: Automatically switch and load PCB sheets of different specifications.
Small batch production: Improve production efficiency and reduce the burden of manual operations.
Specification
| Product name | 90 degree PCB Loader Machine |
| Machine length | 1200mm or 900mm |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Magazine qty | 3 pcs |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Light status | 3 color display |
| Signal | SMEMA |
