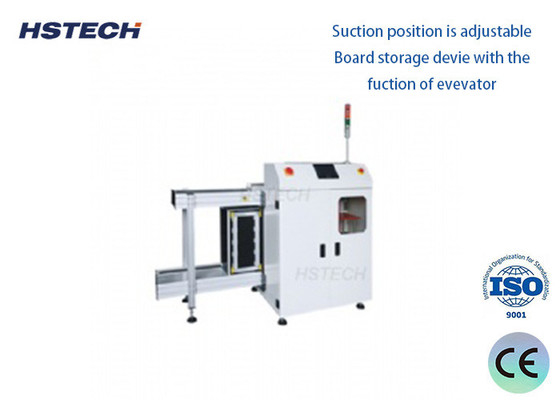

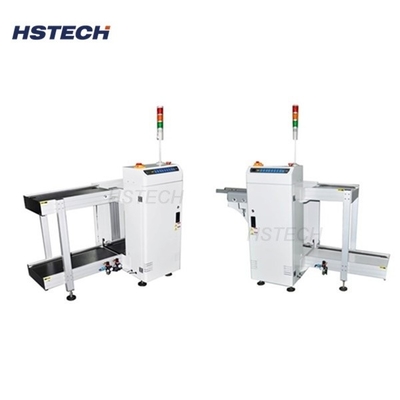

Aluminium Structure Panasonic PLC Control PCB Bare Board Destacker With ESD Transporting Belt

Aluminium Structure Panasonic PLC Control PCB Bare Board Destacker With ESD Transporting Belt

Introduce

PCB Loader is a device used in electronic manufacturing to automatically load printed circuit boards (PCBs) from the input position to the production line. The main goal of the loading machine is to improve the efficiency and automation level of the production line.

The following are some features and working principles of PCB loading machines:

Automated loading: PCB loading machines usually have automated functions that can obtain PCBs to be processed from input locations (such as stackers, conveyor belts, etc.) and automatically transfer them to the next manufacturing process or equipment.

1.Alignment and positioning: The board loader aligns and positions the PCB to ensure it is placed exactly where it is required for the next process step. This is usually achieved through the use of alignment guides, sensors or vision systems.

2.Transmission method: The PCB loading machine can use different transmission methods, such as pneumatic push rods, conveyor belts, chains, robotic arms, etc., to move the PCB from the input position to the target position as needed.

3.Efficiency and line integration: The loading machine is designed to increase the efficiency and overall automation of the production line. It can be seamlessly integrated with other production equipment (such as placement machines, wave soldering machines, etc.) to realize automated PCB processing processes.

4.Versatility: Some advanced PCB loading machines are versatile and can accommodate different sizes, shapes and types of PCBs. They can be quickly adjusted and set up as needed to meet the production requirements of different products.

The advantages of PCB loading machines include:

1.Improve production efficiency: The automated PCB loading process can greatly improve the efficiency of the production line and reduce labor input and processing cycle.

2.Reduce operating errors: The automated operation of the plate loading machine can reduce human errors and improve the accuracy and consistency of processing.

3.Reduce labor costs: Using a plate loading machine can reduce the need for manual operations, thereby reducing labor costs.

Features

1. Panasonic PLC program control.
2. Traditional and simple LED button Control.

3, Smema signal connection.

4, Manual PCB thickness adjustment.

5, Hand crank PCB width adjustment.

6, LED display light status.

7, Aluminium structure, heavy bottom design to prevent shift.
8, Pass-through mode provided.
9, Only taken 10 seconds to change product line.
10, Uninterrupted Loading.

11, ESD transporting belt.
12, Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door

Specification

About Packaging
