| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100 sets per month |

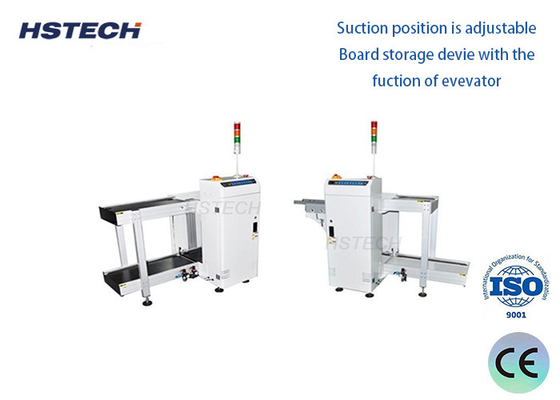

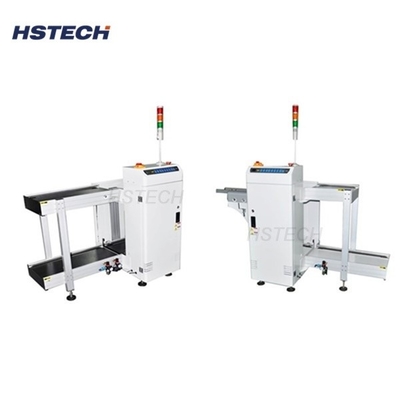

Approx 6 Seconds Touch Screen Control Magazine Loader
Introduction
PCB Magazine Loader is a device used to automate PCB (printed circuit board) production lines. It is mainly used to automatically load PCBs from storage magazines (Magazine) to the production line, or unload the completed PCBs into the magazines. This equipment can significantly improve production efficiency, reduce manual operations, and ensure the safe transmission of PCBs.
Features:
Specification:
| Model | HS-LD330 |
| Product name | PCB Magazine Loader |
| Transport height | 920±20mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Application:
SMT production line: used to load PCBs into or unload them from the placement machine.
Testing and inspection link: used to transfer PCBs to test equipment or AOI (automatic optical inspection) equipment.
Packing link: used to unload finished PCBs into storage magazines for subsequent packaging and transportation.
