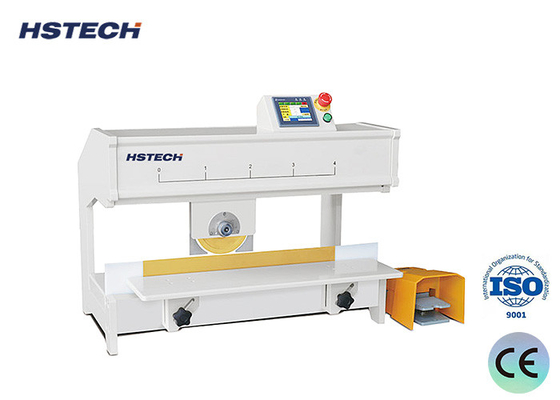

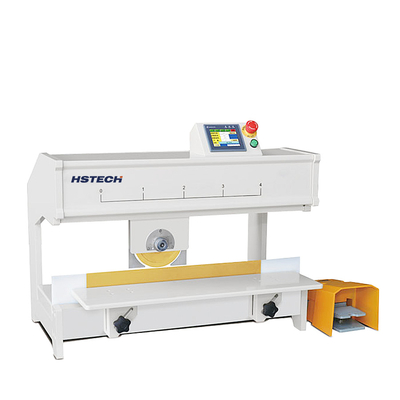

Get Consistent Results with Our Top-of-the-Line and Innovative PCB Router Machine

Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine

Introduce

The PCB Router Machine stands as a highly utilized tool in the realm of printed circuit board (PCB) cutting and separation. Below is a detailed overview of its features and capabilities:

Specifically designed for precise cutting and efficient separation of PCBs, this machine leverages cutting-edge technologies to ensure accurate and reliable results across various manufacturing settings. With its robust construction and intuitive control system, it integrates seamlessly into production lines, thereby enhancing overall productivity and quality.

Equipment Composition:

The PCB Router Machine consists of several key components: a frame, a workbench, cutting tools, a control and monitoring system, and a motion control system. The frame provides structural support, while the workbench holds the PCBs securely in place during the cutting process. The cutting tools perform the actual separation, guided by the control system that sets the parameters and monitors the process. The motion control system, meanwhile, directs the precise movements of the tools.

Automated Cutting:

The PCB Router Machine automates the cutting process by utilizing preset cutting paths, speeds, depths, and other parameters. This minimizes the need for manual input, enhancing productivity and accuracy.

Versatile Cutting Methods:

This machine adapts to a range of cutting techniques, including linear, V-shaped, circular, and other custom methods, to cater to the diverse designs of PCBs.

Precision Cutting:

The PCB Router Machine employs precise tools and advanced technology to ensure accurate cutting according to the preset paths and specifications. This guarantees consistency in quality.

Deburring Capability:

After cutting, the machine has the ability to deburr the edges, removing burrs and residues. This enhances the quality and appearance of the PCBs.

Efficiency & Cost-Effectiveness:

The automated operation and precision cutting of the PCB Router Machine expedite production, minimizing the use of human resources and time. Additionally, it reduces waste and damage, leading to cost savings.

Specification

Features

High-Speed Cutting:

The PCB Router Machine excels in rapid cutting, making it economically viable for large-scale production runs, irrespective of the quantity.

Precision Alignment:

Through a touchscreen interface, the machine sets the cutting distance with precision, aligning accurately with V-slots in PCBs to ensure flawless cutting strokes.

Panel Splitting with Stress Minimization:

The PCB Router Machine uses a combination of moving and stationary blades during panel splitting, minimizing stress on PCBs. This effectively prevents fractures at welding points and maintains structural integrity.

Static PCB, Dynamic Blade Operation:

During the splitting process, the PCB remains stationary while the blade moves, ensuring consistent quality and precision in each cut.

Enhanced Efficiency & Quality:

Compared to manual operation, the machine significantly reduces stress on welding spots, leading to improved working efficiency and product quality.

Adjustable Cutting Distance:

With a flexible cutting distance range of 1 to 100 meters, the PCB Router Machine caters to diverse customer requirements and enhances operational efficiency.

Customizable Starting Position:

The ability to set the starting cutting position freely allows for optimized cutting patterns, contributing to the machine's durability and extending its lifespan.

Counting Function for Advanced Data Management:

Equipped with a counting feature, the PCB Router Machine facilitates comprehensive post-production data analysis and reporting, improving production management and traceability.

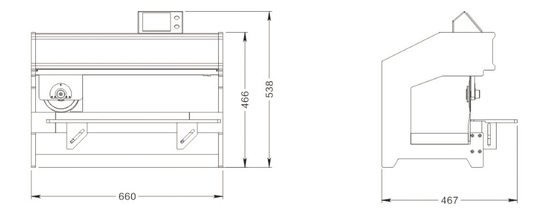

Machine Size

About Packaging
