| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

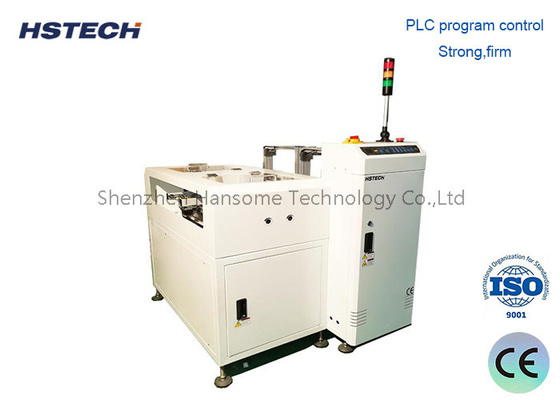

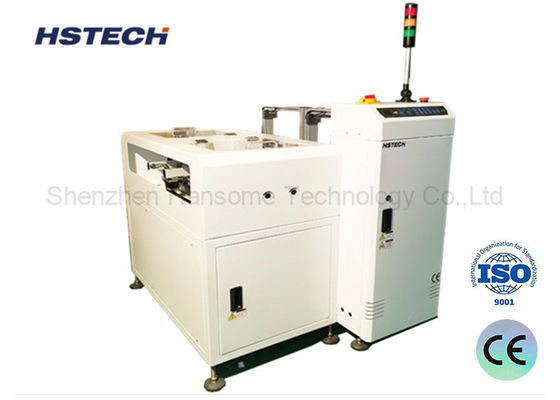

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
After undergoing the Automated Optical Inspection (AOI) process, this unit operates effectively by receiving inspection signals from the preceding stage. It automatically categorizes the PCBs into two groups: non-conforming (NG) and conforming (OK), and then directs them into their respective designated storage areas. This ensures a highly efficient and organized sorting of the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features
PLC Control:
The system utilizes a PLC for precise and reliable operation.
User-Friendly Interface:
An intuitive LED membrane panel with soft-touch buttons allows for easy control.
Adjustable Pitch Mechanism:
Accommodates a variety of PCB sizes and configurations with ease.
Toggle Clamps:
Ensure stable PCB placement by providing secure magazine alignment.
Pneumatic Pusher System:
Pressure-controlled to guarantee gentle and non-damaging board transfer.
High Production Efficiency:
Optimized magazine changeovers enhance manufacturing throughput.
Automated NG/OK Sorting:
Integrates seamlessly with AOI for efficient inspection and categorization.
SMEMA Communication Interface:
Supports smooth integration into production lines via SMEMA protocol, enabling seamless communication and data exchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
