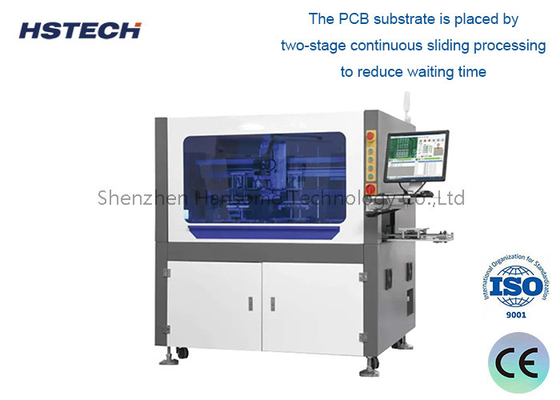

Double Platform PCB Router Machine for Depaneling Straight Line and Arc Boards
Machine introduction
The PCB Board Cutting Machine is tailored for automated cutting of PCBA circuit boards after components have been inserted. It features X, Y two-directional automatic v-cutting, setting it apart from conventional single-direction manual v-cutting techniques. This advancement dramatically boosts the board's processing efficiency.
Main features
Premium Craftsmanship:
The circular knife boasts high-speed tungsten steel construction, guaranteeing robustness and pinpoint accuracy.
Efficiency Boost:
The dual slide-in mechanism minimizes cutting interruptions, thereby elevating overall production throughput.
Flexible Programming Options:
The machine provides customizable cutting modes, encompassing individual routing and circular cutting programs, as well as combined cutting programs for added versatility.
Automated Vision Alignment:
The vision system automatically detects and adjusts MARCK or optical points to ensure precision.
Automatic Routing Monitoring:
Equipped with an automatic check and alert feature, it includes a preset cutting duration limit (100H), prompting users to replace tools as needed.
Reiterating Quality:
The circular knife, once again, stands out for its exceptional quality, crafted from high-speed tungsten steel.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Machine details
