| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

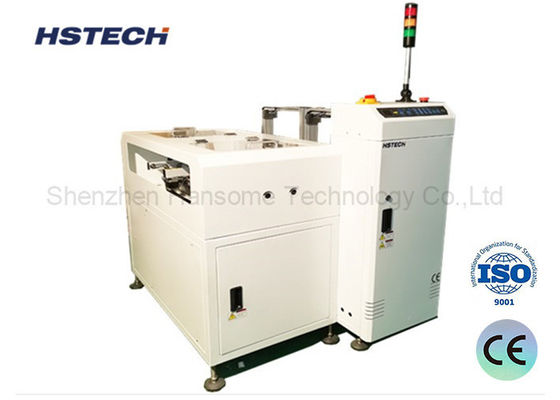

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
This unit functions subsequent to the Automated Optical Inspection (AOI) process. Upon receiving the AOI inspection signal from the preceding stage, it efficiently categorizes the PCBs into two groups: non-conforming (NG) and conforming (OK), automatically directing them into their respective designated magazines. This guarantees a highly efficient and organized sorting procedure for the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features

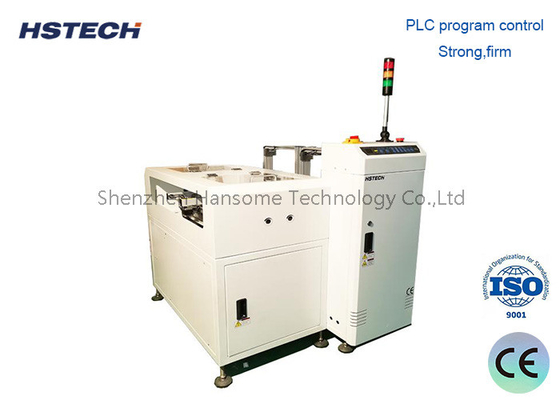

PLC Control:
Features a PLC for accurate and dependable operation.
User-Friendly Interface:
Incorporates a soft-touch LED membrane panel for intuitive control.
Adjustable Pitch:
Adapts to different PCB sizes and configurations.
Toggle Clamps:
Ensure secure magazine alignment for stable PCB placement.
Pneumatic Pusher:
Pressure-controlled for gentle, non-destructive board transfer.
High Throughput:
Facilitates rapid magazine changeover to maximize production efficiency.
Automatic NG/OK Sorting:
Integrates seamlessly with AOI for streamlined inspection and sorting.
SMEMA Standard Communications Interface:
Allows seamless integration into production lines via SMEMA protocol, ensuring smooth communication and data exchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |

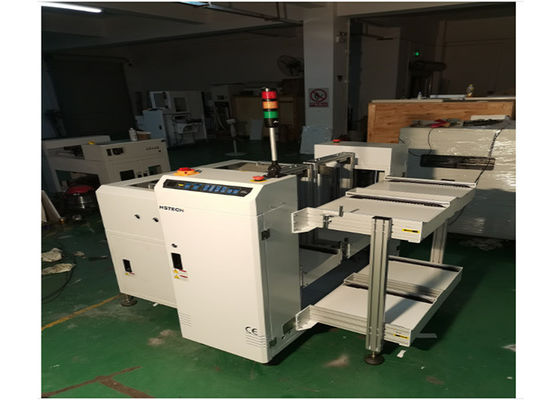

The Product and Details
