| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

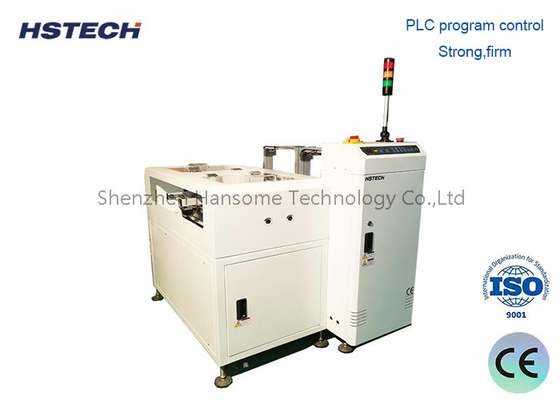

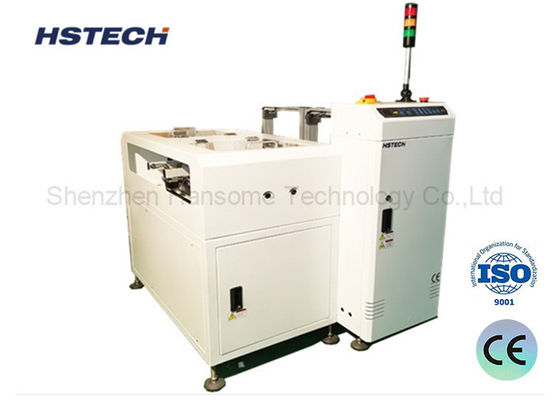

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
After undergoing the Automated Optical Inspection (AOI) process, this unit operates efficiently by receiving inspection signals from the previous stage. It automatically segregates the PCBs into two categories: non-conforming (NG) and conforming (OK), and then directs them into their respective designated magazines. This guarantees a highly efficient and well-organized sorting of the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features
PLC Control:
The system employs a PLC for precise and dependable functionality.
User-Friendly Interface:
An intuitive soft-touch LED membrane panel is included for effortless control.
Adjustable Pitch Mechanism:
Easily accommodates a wide range of PCB sizes and configurations.
Toggle Clamps:
Provide secure magazine alignment, ensuring stable PCB placement.
Pneumatic Pusher System:
Pressure-controlled to ensure gentle and non-destructive board transfer.
High Production Throughput:
Rapid magazine changeovers optimize manufacturing efficiency.
Automated NG/OK Sorting Capability:
Smoothly integrates with AOI for streamlined inspection and categorization.
SMEMA Communication Interface:
Supports seamless integration into production lines through SMEMA protocol, enabling smooth communication and data interchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
