| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |

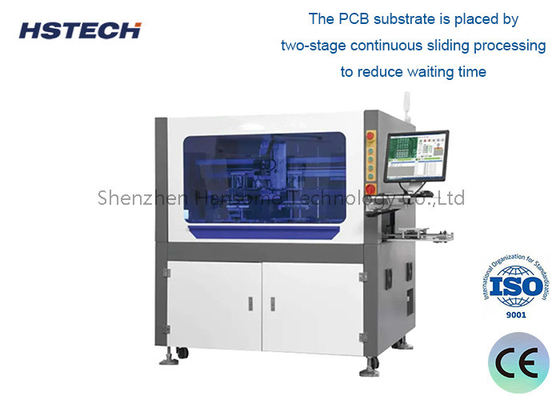

Double Platform PCB Router Machine for Depaneling Straight Line and Arc Boards
Machine introduction
The PCB Board Cutting Machine is specifically designed for automated cutting of PCBA circuit boards post-insertion. It offers X, Y two-directional automatic v-cutting, distinguishing it from traditional single-direction manual v-cutting methods. This innovation significantly enhances the board's processing efficiency.
Main features
Premium Quality: The circular knife is crafted from high-speed tungsten steel, ensuring durability and precision.
Enhanced Efficiency: The double slide-into-place device minimizes cutting downtime, boosting overall production capacity.
Versatile Programming: The machine offers programmable cutting types, including separate routing and circular cutting programming, as well as mixed cutting programming for flexibility.
Automated Vision Correction: The visual system automatically identifies and corrects MARCK points or optical points for accuracy.
Automatic Routing Check: Features an automatic check and prompt function, with a set time limit (100H) for cutting, reminding users to change tools when necessary.
Repeat of High-Quality Feature: (For diversity in phrasing) The circular knife is again noted for its superior quality, being made of high-speed tungsten steel.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Machine details
