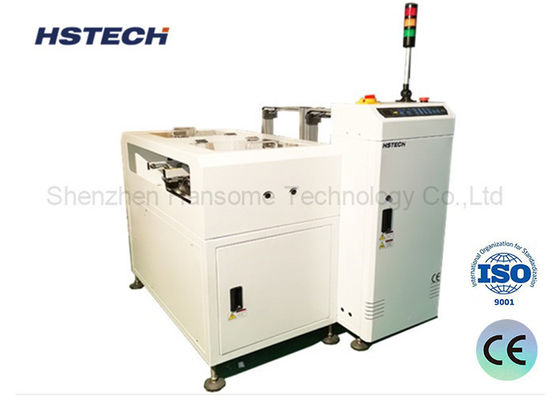

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
Following the Automated Optical Inspection (AOI) process, this unit operates efficiently by receiving inspection signals from the preceding stage. It automatically categorizes the PCBs into two groups: non-conforming (NG) and conforming (OK), and directs them into their respective designated magazines. This ensures a highly efficient and organized sorting of the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features

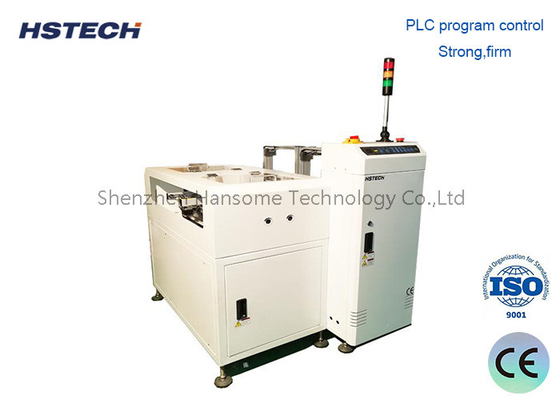

PLC Control:
The system incorporates a PLC for precise and reliable operation.
User-Friendly Interface:
Features a soft-touch LED membrane panel for intuitive and effortless control.
Adjustable Pitch:
Designed to accommodate a variety of PCB sizes and configurations with ease.
Toggle Clamps:
Ensure secure magazine alignment, facilitating stable board placement.
Pneumatic Pusher:
Pressure-regulated to guarantee gentle and damage-free board transfer.
High Throughput:
Rapid magazine changeover maximizes production efficiency.
Automated NG/OK Sorting:
Seamlessly integrates with AOI for streamlined inspection and sorting.
SMEMA Standard Communications Interface:
Enables seamless integration into production lines via SMEMA protocol, facilitating smooth communication and data exchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
