High Speed Mini Offline PCBA Router Machine for Small Size PCB with Flexible Cutting
Introduction:
This equipment is a specialized routing machine, custom-designed for small-scale or individual production of PCBA (Printed Circuit Board Assembly). Its primary function is to perform precise cutting and segmentation of PCBs with mounted components, ensuring the utmost accuracy. Leveraging advanced CNC (Computer Numerical Control) technology, the machine achieves unparalleled precision and repeatability in its operations.
Features:
Autonomous Offline Separation: Operating independently, the system facilitates seamless and efficient automatic PCB separation, optimizing workflows and minimizing operational downtime.
Compact PCBA Router: Perfect for small-sized PCBs, this router not only fits snugly in confined factory spaces but also offers cost-effective and space-saving production solutions.
Adaptable Fixtures: Customizable fixtures ensure compatibility and stability across a diverse range of PCB designs and sizes, facilitating accurate processing.

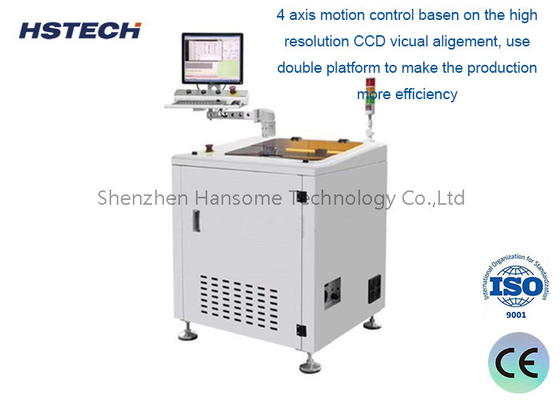

Integrated PC & CCD Vision System: Equipped with a high-precision PC-controlled system and a CCD visual system, it enables precise alignment and monitoring of the cutting process, guaranteeing exceptional accuracy.
Programmable with Compensation & Integrated Dust Collection: Advanced programming capabilities with built-in compensation functions adjust for minor inaccuracies, maintaining peak performance. The integrated dust collection system keeps the work area clean and debris-free.
Handles PCBs up to 410-510mm: Designed to accommodate PCBs up to 410-510mm in size, this router offers versatility and scalability to meet various production needs.
Multi-Product Cutting Capability: Its versatility allows for the cutting of two different product types on the same machine, enhancing efficiency and reducing the need for specialized machinery.
Flexible Operation Platform: Featuring an open platform design, the router simplifies manual feeding and unloading. Optionally, it can be equipped with a mechanical arm (robot) for fully automated operations, boosting productivity and minimizing labor costs.
Specification:
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindel/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programing | Visioin teaching, inline programing | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |

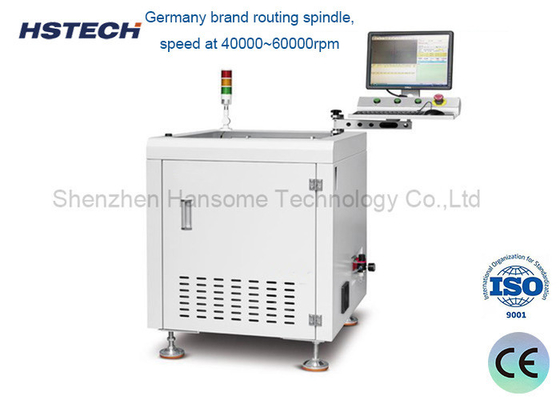

| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industril camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen |
17inch
|
|
Typical application scenarios:
Personal or Small Electronic DIY Projects: Ideal for crafting your own PCB circuit boards for personal or small-scale electronic DIY endeavors.
Small-Batch PCBA Production: Suitable for rapid prototyping and small-batch trial production, catering to the needs of small-scale manufacturers and innovators.
PCB Cutting and Splitting for Repairs/Modifications: Perfect for cutting and splitting PCBs during the repair or modification of electronic products, ensuring precise and efficient adjustments.
Educational Use in Teaching Laboratories: An excellent tool for teaching laboratories, allowing students to gain hands-on experience and understand the PCBA processing technology.
